Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: AssignmentAvailabilityType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract

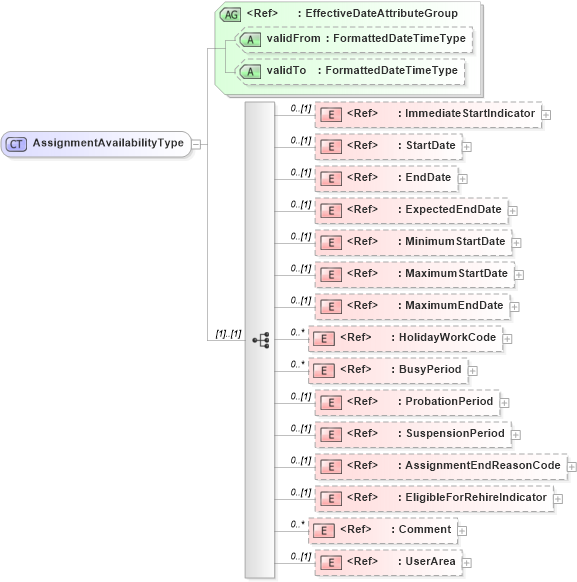

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Comment in schema fields_xsd Drilldown into EligibleForRehireIndicator in schema fields_xsd Drilldown into AssignmentEndReasonCode in schema fields_xsd Drilldown into SuspensionPeriod in schema components_xsd Drilldown into ProbationPeriod in schema components_xsd Drilldown into BusyPeriod in schema components_xsd Drilldown into HolidayWorkCode in schema fields_xsd Drilldown into MaximumEndDate in schema fields_xsd Drilldown into MaximumStartDate in schema fields_xsd Drilldown into MinimumStartDate in schema fields_xsd Drilldown into ExpectedEndDate in schema fields_xsd Drilldown into EndDate in schema fields_xsd Drilldown into StartDate in schema fields_xsd Drilldown into ImmediateStartIndicator in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of AssignmentAvailabilityType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="AssignmentAvailabilityType">
    <xsd:sequence>
        <xsd:element ref="ImmediateStartIndicator" minOccurs="0" />
        <xsd:element ref="StartDate" minOccurs="0" />
        <xsd:element ref="EndDate" minOccurs="0" />
        <xsd:element ref="ExpectedEndDate" minOccurs="0" />
        <xsd:element ref="MinimumStartDate" minOccurs="0" />
        <xsd:element ref="MaximumStartDate" minOccurs="0" />
        <xsd:element ref="MaximumEndDate" minOccurs="0" />
        <xsd:element ref="HolidayWorkCode" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="BusyPeriod" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ProbationPeriod" minOccurs="0" />
        <xsd:element ref="SuspensionPeriod" minOccurs="0" />
        <xsd:element ref="AssignmentEndReasonCode" minOccurs="0" />
        <xsd:element ref="EligibleForRehireIndicator" minOccurs="0" />
        <xsd:element ref="Comment" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ImmediateStartIndicator nsA:ImmediateStartIndicator 0 (1)
StartDate nsA:StartDate 0 (1)
EndDate nsA:EndDate 0 (1)
ExpectedEndDate nsA:ExpectedEndDate 0 (1)
MinimumStartDate nsA:MinimumStartDate 0 (1)
MaximumStartDate nsA:MaximumStartDate 0 (1)
MaximumEndDate nsA:MaximumEndDate 0 (1)
HolidayWorkCode nsA:HolidayWorkCode 0 unbounded
BusyPeriod nsA:BusyPeriod 0 unbounded
ProbationPeriod nsA:ProbationPeriod 0 (1)
SuspensionPeriod nsA:SuspensionPeriod 0 (1)
AssignmentEndReasonCode nsA:AssignmentEndReasonCode 0 (1)
EligibleForRehireIndicator nsA:EligibleForRehireIndicator 0 (1)
Comment nsA:Comment 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:AssignmentAvailability
