Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: AttachmentBaseType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract

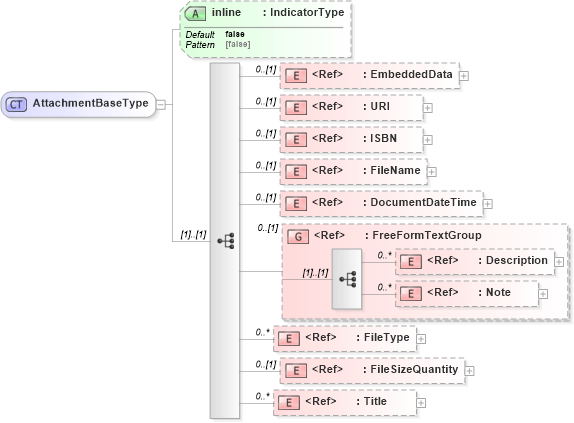

Collapse XSD Schema Diagram:
Drilldown into Title in schema fields_xsd1 Drilldown into FileSizeQuantity in schema fields_xsd1 Drilldown into FileType in schema fields_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd1 Drilldown into FileName in schema fields_xsd1 Drilldown into ISBN in schema fields_xsd1 Drilldown into URI in schema fields_xsd1 Drilldown into EmbeddedData in schema fields_xsd1 Drilldown into inline in schema components_xsd1XSD Diagram of AttachmentBaseType in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="AttachmentBaseType">
    <xsd:sequence>
        <xsd:element ref="EmbeddedData" minOccurs="0" />
        <xsd:element ref="URI" minOccurs="0" />
        <xsd:element ref="ISBN" minOccurs="0" />
        <xsd:element ref="FileName" minOccurs="0" />
        <xsd:element ref="DocumentDateTime" minOccurs="0" />
        <xsd:group ref="FreeFormTextGroup" minOccurs="0" />
        <xsd:element ref="FileType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="FileSizeQuantity" minOccurs="0" />
        <xsd:element ref="Title" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="inline" type="IndicatorType" default="false" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EmbeddedData oa:EmbeddedData 0 (1)
URI oa:URI 0 (1)
ISBN oa:ISBN 0 (1)
FileName oa:FileName 0 (1)
DocumentDateTime oa:DocumentDateTime 0 (1)
Description oa:Description 0 unbounded
Note oa:Note 0 unbounded
FileType oa:FileType 0 unbounded
FileSizeQuantity oa:FileSizeQuantity 0 (1)
Title oa:Title 0 unbounded
<xs:group> oa:FreeFormTextGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
inline oa:inline false (Optional)
Collapse Derivation Tree:
Collapse References:
oa:ImageAttachmentType, oa:SemanticAttachmentType
