Definition Type: ComplexType
Name: ImageAttachmentType
Namespace: http://www.openapplications.org/oagis/9
Type: oa:AttachmentBaseType
Containing Schema: Components.xsd
Abstract

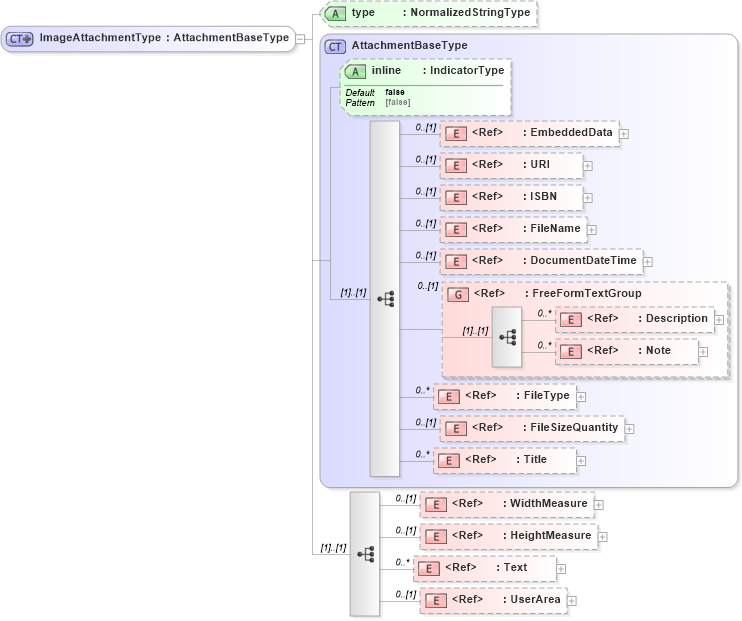

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd1 Drilldown into Text in schema fields_xsd1 Drilldown into HeightMeasure in schema fields_xsd1 Drilldown into WidthMeasure in schema fields_xsd1 Drilldown into Title in schema fields_xsd1 Drilldown into FileSizeQuantity in schema fields_xsd1 Drilldown into FileType in schema fields_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd1 Drilldown into FileName in schema fields_xsd1 Drilldown into ISBN in schema fields_xsd1 Drilldown into URI in schema fields_xsd1 Drilldown into EmbeddedData in schema fields_xsd1 Drilldown into inline in schema components_xsd1 Drilldown into AttachmentBaseType in schema components_xsd1 Drilldown into type in schema components_xsd1XSD Diagram of ImageAttachmentType in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ImageAttachmentType">
    <xsd:complexContent>
        <xsd:extension base="AttachmentBaseType">
            <xsd:sequence>
                <xsd:element ref="WidthMeasure" minOccurs="0" />
                <xsd:element ref="HeightMeasure" minOccurs="0" />
                <xsd:element ref="Text" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
            <xsd:attribute name="type" type="NormalizedStringType" use="optional" />
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EmbeddedData oa:EmbeddedData 0 (1)
URI oa:URI 0 (1)
ISBN oa:ISBN 0 (1)
FileName oa:FileName 0 (1)
DocumentDateTime oa:DocumentDateTime 0 (1)
Description oa:Description 0 unbounded
Note oa:Note 0 unbounded
FileType oa:FileType 0 unbounded
FileSizeQuantity oa:FileSizeQuantity 0 (1)
Title oa:Title 0 unbounded
WidthMeasure oa:WidthMeasure 0 (1)
HeightMeasure oa:HeightMeasure 0 (1)
Text oa:Text 0 unbounded
UserArea oa:UserArea 0 (1)
<xs:group> oa:FreeFormTextGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
inline oa:inline false (Optional)
type oa:type Optional
Collapse Derivation Tree:
Collapse References:
oa:ImageAttachment
