Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: CriminalChargeType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract

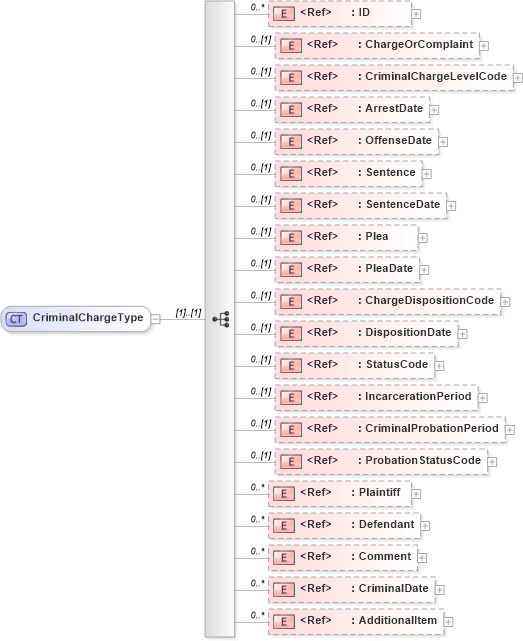

Collapse XSD Schema Diagram:
Drilldown into AdditionalItem in schema components_xsd Drilldown into CriminalDate in schema fields_xsd Drilldown into Comment in schema fields_xsd Drilldown into Defendant in schema components_xsd Drilldown into Plaintiff in schema components_xsd Drilldown into ProbationStatusCode in schema fields_xsd Drilldown into CriminalProbationPeriod in schema components_xsd Drilldown into IncarcerationPeriod in schema components_xsd Drilldown into StatusCode in schema fields_xsd1 Drilldown into DispositionDate in schema fields_xsd Drilldown into ChargeDispositionCode in schema fields_xsd Drilldown into PleaDate in schema fields_xsd Drilldown into Plea in schema fields_xsd Drilldown into SentenceDate in schema fields_xsd Drilldown into Sentence in schema fields_xsd Drilldown into OffenseDate in schema fields_xsd Drilldown into ArrestDate in schema fields_xsd Drilldown into CriminalChargeLevelCode in schema fields_xsd Drilldown into ChargeOrComplaint in schema fields_xsd Drilldown into ID in schema fields_xsdXSD Diagram of CriminalChargeType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="CriminalChargeType">
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ChargeOrComplaint" minOccurs="0" />
        <xsd:element ref="CriminalChargeLevelCode" minOccurs="0" />
        <xsd:element ref="ArrestDate" minOccurs="0" />
        <xsd:element ref="OffenseDate" minOccurs="0" />
        <xsd:element ref="Sentence" minOccurs="0" />
        <xsd:element ref="SentenceDate" minOccurs="0" />
        <xsd:element ref="Plea" minOccurs="0" />
        <xsd:element ref="PleaDate" minOccurs="0" />
        <xsd:element ref="ChargeDispositionCode" minOccurs="0" />
        <xsd:element ref="DispositionDate" minOccurs="0" />
        <xsd:element ref="oa:StatusCode" minOccurs="0" />
        <xsd:element ref="IncarcerationPeriod" minOccurs="0" />
        <xsd:element ref="CriminalProbationPeriod" minOccurs="0" />
        <xsd:element ref="ProbationStatusCode" minOccurs="0" />
        <xsd:element ref="Plaintiff" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Defendant" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Comment" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CriminalDate" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="AdditionalItem" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 unbounded
ChargeOrComplaint nsA:ChargeOrComplaint 0 (1)
CriminalChargeLevelCode nsA:CriminalChargeLevelCode 0 (1)
ArrestDate nsA:ArrestDate 0 (1)
OffenseDate nsA:OffenseDate 0 (1)
Sentence nsA:Sentence 0 (1)
SentenceDate nsA:SentenceDate 0 (1)
Plea nsA:Plea 0 (1)
PleaDate nsA:PleaDate 0 (1)
ChargeDispositionCode nsA:ChargeDispositionCode 0 (1)
DispositionDate nsA:DispositionDate 0 (1)
StatusCode oa:StatusCode 0 (1)
IncarcerationPeriod nsA:IncarcerationPeriod 0 (1)
CriminalProbationPeriod nsA:CriminalProbationPeriod 0 (1)
ProbationStatusCode nsA:ProbationStatusCode 0 (1)
Plaintiff nsA:Plaintiff 0 unbounded
Defendant nsA:Defendant 0 unbounded
Comment nsA:Comment 0 unbounded
CriminalDate nsA:CriminalDate 0 unbounded
AdditionalItem nsA:AdditionalItem 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:CriminalCharge
