Definition Type: ComplexType
Name: DimensionABIEType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract
Documentation:
DimensionABIEType is logically derived from UN/CEFACT TBG17 ABIE DimensionType as defined in the Reusable Aggregate Business Information Entity (RUABIE) XML Schema file.

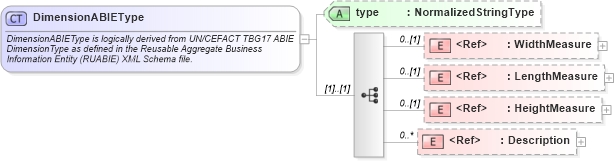

Collapse XSD Schema Diagram:
Drilldown into Description in schema fields_xsd1 Drilldown into HeightMeasure in schema fields_xsd1 Drilldown into LengthMeasure in schema fields_xsd1 Drilldown into WidthMeasure in schema fields_xsd1 Drilldown into type in schema components_xsd1XSD Diagram of DimensionABIEType in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="DimensionABIEType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/platform/1">DimensionABIEType is logically derived from UN/CEFACT TBG17 ABIE DimensionType as defined in the Reusable Aggregate Business Information Entity (RUABIE) XML Schema file.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="WidthMeasure" minOccurs="0" />
        <xsd:element ref="LengthMeasure" minOccurs="0" />
        <xsd:element ref="HeightMeasure" minOccurs="0" />
        <xsd:element ref="Description" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="type" type="NormalizedStringType" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
WidthMeasure oa:WidthMeasure 0 (1)
LengthMeasure oa:LengthMeasure 0 (1)
HeightMeasure oa:HeightMeasure 0 (1)
Description oa:Description 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
type oa:type (Optional)
Collapse Derivation Tree:
Collapse References:
oa:DimensionType
