Definition Type: Element
Name: Dimensions
Namespace: http://www.openapplications.org/oagis/9
Type: oa:DimensionType
Containing Schema: Components.xsd
Abstract
Documentation:
Provides the dimensions of the associated component.

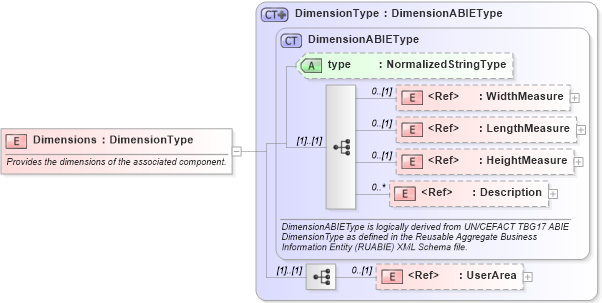

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into HeightMeasure in schema fields_xsd1 Drilldown into LengthMeasure in schema fields_xsd1 Drilldown into WidthMeasure in schema fields_xsd1 Drilldown into type in schema components_xsd1 Drilldown into DimensionABIEType in schema components_xsd1 Drilldown into DimensionType in schema components_xsd1XSD Diagram of Dimensions in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="Dimensions" type="DimensionType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/platform/1">Provides the dimensions of the associated component.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
WidthMeasure oa:WidthMeasure 0 (1)
LengthMeasure oa:LengthMeasure 0 (1)
HeightMeasure oa:HeightMeasure 0 (1)
Description oa:Description 0 unbounded
UserArea oa:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type oa:type (Optional)
Collapse Derivation Tree:
