Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: EmploymentLifecycle
Namespace: http://www.hr-xml.org/3
Type: nsA:EmploymentLifecycleType
Containing Schema: Components.xsd
Abstract

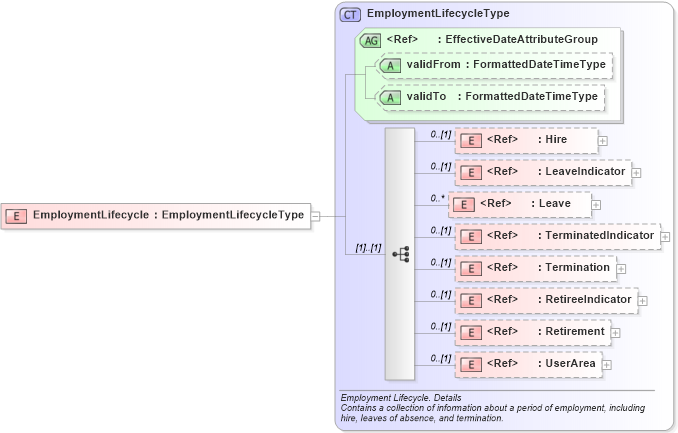

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Retirement in schema components_xsd Drilldown into RetireeIndicator in schema fields_xsd Drilldown into Termination in schema components_xsd Drilldown into TerminatedIndicator in schema fields_xsd Drilldown into Leave in schema components_xsd Drilldown into LeaveIndicator in schema fields_xsd Drilldown into Hire in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into EmploymentLifecycleType in schema components_xsdXSD Diagram of EmploymentLifecycle in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="EmploymentLifecycle" type="EmploymentLifecycleType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hire nsA:Hire 0 (1)
LeaveIndicator nsA:LeaveIndicator 0 (1)
Leave nsA:Leave 0 unbounded
TerminatedIndicator nsA:TerminatedIndicator 0 (1)
Termination nsA:Termination 0 (1)
RetireeIndicator nsA:RetireeIndicator 0 (1)
Retirement nsA:Retirement 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
