Definition Type: ComplexType
Name: EmploymentLifecycleType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
Employment Lifecycle. Details Contains a collection of information about a period of employment, including hire, leaves of absence, and termination.

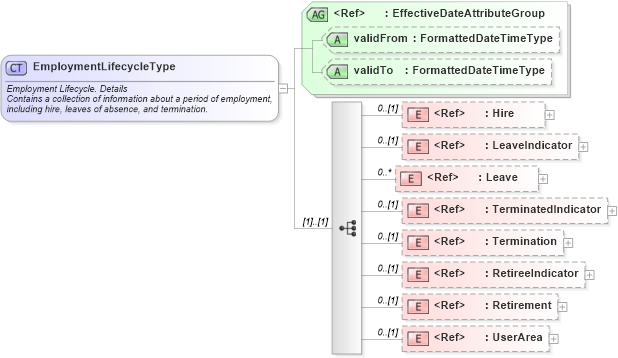

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Retirement in schema components_xsd Drilldown into RetireeIndicator in schema fields_xsd Drilldown into Termination in schema components_xsd Drilldown into TerminatedIndicator in schema fields_xsd Drilldown into Leave in schema components_xsd Drilldown into LeaveIndicator in schema fields_xsd Drilldown into Hire in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of EmploymentLifecycleType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="EmploymentLifecycleType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Employment Lifecycle. Details</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Contains a collection of information about a period of employment, including hire, leaves of absence, and termination.</ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="Hire" minOccurs="0" />
        <xsd:element ref="LeaveIndicator" minOccurs="0" />
        <xsd:element ref="Leave" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">Contains details about a leave of absence from employment.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="TerminatedIndicator" minOccurs="0" />
        <xsd:element ref="Termination" minOccurs="0" />
        <xsd:element ref="RetireeIndicator" minOccurs="0" />
        <xsd:element ref="Retirement" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hire nsA:Hire 0 (1)
LeaveIndicator nsA:LeaveIndicator 0 (1)
Leave nsA:Leave 0 unbounded
TerminatedIndicator nsA:TerminatedIndicator 0 (1)
Termination nsA:Termination 0 (1)
RetireeIndicator nsA:RetireeIndicator 0 (1)
Retirement nsA:Retirement 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:EmploymentLifecycle
