Definition Type: Element
Name: FamilyName
Namespace: http://www.hr-xml.org/3
Type: nsA:FamilyNameType
Containing Schema: Fields.xsd
Abstract
Documentation:
Contains a non-given name. This is an inherited name or one representing a family relationship or in some cultural contexts a "Place Name" (where someone is from). In some cultural contexts, a single family name is typical, while in others there may be multiple family names. A "primary" attribute may be used in the case where there are multiple last names. A family name can have a "prefix," such as Von, De, Van, Al, etc. These can be represented using the FamilyName "prefix" attribute. Not all implementers may find it necessary to separate prefixes from the family name itself. Capturing the prefix and FamilyName as discrete fields can become important when formatting or appearance may vary based on context. For example, in some cultural contexts it may be common to use a blank space as the delimiter between the prefix and the family name, while in others a hyphen might be used. Separating the prefix from FamilyName allows such formatting requirements to be handled flexibly.

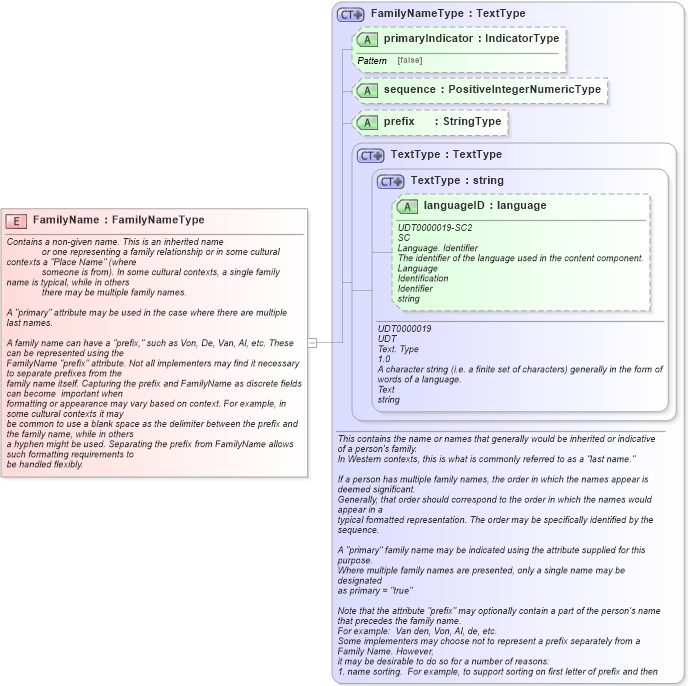

Collapse XSD Schema Diagram:
Drilldown into languageID in schema unqualifieddatatypes_xsd Drilldown into TextType in schema unqualifieddatatypes_xsd Drilldown into TextType in schema fields_xsd1 Drilldown into prefix in schema fields_xsd Drilldown into sequence in schema fields_xsd Drilldown into primaryIndicator in schema fields_xsd Drilldown into FamilyNameType in schema fields_xsdXSD Diagram of FamilyName in schema fields_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="FamilyName" type="FamilyNameType">
    <xsd:annotation>
        <xsd:documentation>Contains a non-given name. This is an inherited name
	or one representing a family relationship or in some cultural contexts a "Place Name" (where
	someone is from). In some cultural contexts, a single family name is typical, while in others
	there may be multiple family names.

A "primary" attribute may be used in the case where there are multiple last names.

A family name can have a "prefix," such as Von, De, Van, Al, etc. These can be represented using the
FamilyName "prefix" attribute. Not all implementers may find it necessary to separate prefixes from the
family name itself. Capturing the prefix and FamilyName as discrete fields can become  important when
formatting or appearance may vary based on context. For example, in some cultural contexts it may
be common to use a blank space as the delimiter between the prefix and the family name, while in others
a hyphen might be used. Separating the prefix from FamilyName allows such formatting requirements to
be handled flexibly. </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
languageID udt:languageID Optional
primaryIndicator nsA:primaryIndicator (Optional)
sequence nsA:sequence (Optional)
prefix nsA:prefix (Optional)
Collapse Derivation Tree:
