Definition Type: ComplexType
Name: FrameAgreementType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Collapse XSD Schema Diagram:

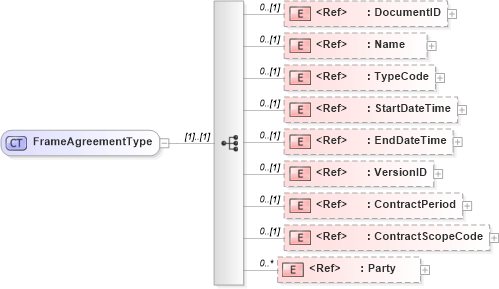

Drilldown into Party in schema components_xsd Drilldown into ContractScopeCode in schema fields_xsd Drilldown into ContractPeriod in schema components_xsd Drilldown into VersionID in schema fields_xsd Drilldown into EndDateTime in schema fields_xsd Drilldown into StartDateTime in schema fields_xsd Drilldown into TypeCode in schema fields_xsd Drilldown into Name in schema fields_xsd1 Drilldown into DocumentID in schema fields_xsdXSD Diagram of FrameAgreementType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="FrameAgreementType">
    <xsd:sequence>
        <xsd:element ref="DocumentID" minOccurs="0" />
        <xsd:element ref="oa:Name" minOccurs="0" />
        <xsd:element ref="TypeCode" minOccurs="0" />
        <xsd:element ref="StartDateTime" minOccurs="0" />
        <xsd:element ref="EndDateTime" minOccurs="0" />
        <xsd:element ref="VersionID" minOccurs="0" />
        <xsd:element ref="ContractPeriod" minOccurs="0" />
        <xsd:element ref="ContractScopeCode" minOccurs="0" />
        <xsd:element ref="Party" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
Name oa:Name 0 (1)
TypeCode nsA:TypeCode 0 (1)
StartDateTime nsA:StartDateTime 0 (1)
EndDateTime nsA:EndDateTime 0 (1)
VersionID nsA:VersionID 0 (1)
ContractPeriod nsA:ContractPeriod 0 (1)
ContractScopeCode nsA:ContractScopeCode 0 (1)
Party nsA:Party 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:FrameAgreement
