Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: JobEvaluation
Namespace: http://www.hr-xml.org/3
Type: nsA:JobEvaluationType
Containing Schema: Components.xsd
Abstract
Collapse XSD Schema Diagram:

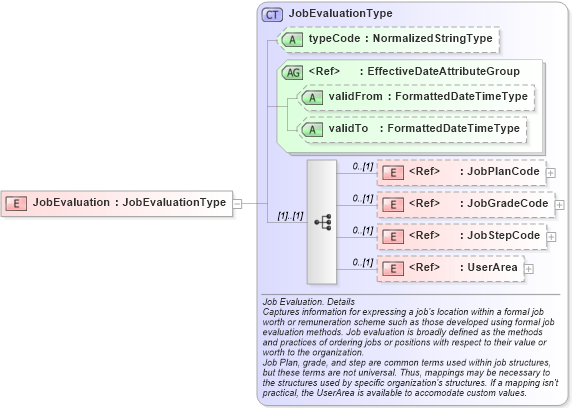

Drilldown into UserArea in schema fields_xsd Drilldown into JobStepCode in schema fields_xsd Drilldown into JobGradeCode in schema fields_xsd Drilldown into JobPlanCode in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into typeCode in schema components_xsd Drilldown into JobEvaluationType in schema components_xsdXSD Diagram of JobEvaluation in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="JobEvaluation" type="JobEvaluationType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
JobPlanCode nsA:JobPlanCode 0 (1)
JobGradeCode nsA:JobGradeCode 0 (1)
JobStepCode nsA:JobStepCode 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
typeCode nsA:typeCode (Optional)
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Documentation for HR-XML - Human Resources XML

Generated using Liquid Studio - Developer Bundle 21.0.0.0
