Definition Type: ComplexType
Name: LineType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract
Documentation:
The abstract Line type that is the basis for all non-statusable OAGIS Document Lines

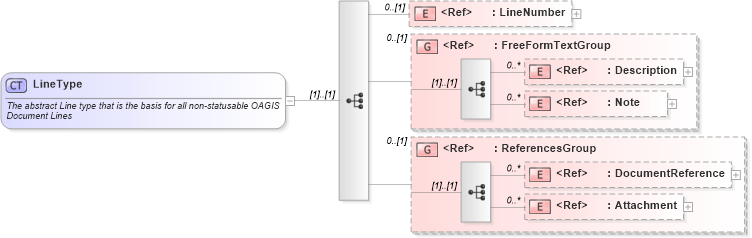

Collapse XSD Schema Diagram:
Drilldown into Attachment in schema components_xsd1 Drilldown into DocumentReference in schema components_xsd1 Drilldown into ReferencesGroup in schema components_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd1XSD Diagram of LineType in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="LineType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/platform/1">The abstract Line type that is the basis for all non-statusable OAGIS Document Lines</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="LineNumber" minOccurs="0" />
        <xsd:group ref="FreeFormTextGroup" minOccurs="0" />
        <xsd:group ref="ReferencesGroup" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber oa:LineNumber 0 (1)
Description oa:Description 0 unbounded
Note oa:Note 0 unbounded
DocumentReference oa:DocumentReference 0 unbounded
Attachment oa:Attachment 0 unbounded
<xs:group> oa:FreeFormTextGroup 0 (1)
<xs:group> oa:ReferencesGroup 0 (1)
Collapse Derivation Tree:
Collapse References:
oa:ProcurementScheduleType, oa:RequestSubLineTypeoa:ScheduleExceptionType, oa:StatusEnabledLineType,
