Definition Type: ComplexType
Name: OrderLineType
Namespace: http://www.openapplications.org/oagis/9
Type: oa:ProcurementLineType
Containing Schema: OrderManagementComponents.xsd
Abstract

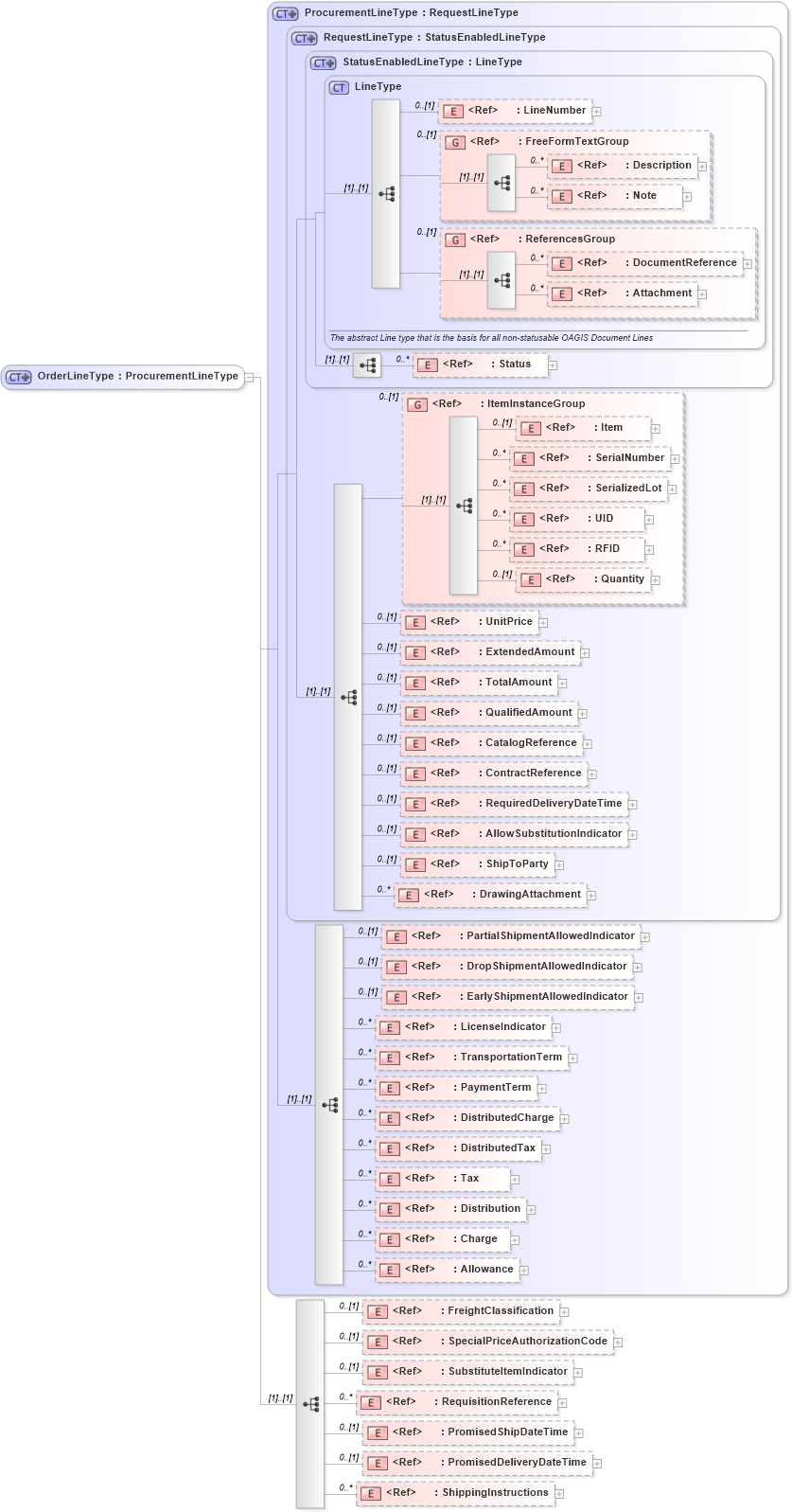

Collapse XSD Schema Diagram:
Drilldown into ShippingInstructions in schema fields_xsd1 Drilldown into PromisedDeliveryDateTime in schema fields_xsd1 Drilldown into PromisedShipDateTime in schema fields_xsd1 Drilldown into RequisitionReference in schema components_xsd1 Drilldown into SubstituteItemIndicator in schema fields_xsd1 Drilldown into SpecialPriceAuthorizationCode in schema fields_xsd1 Drilldown into FreightClassification in schema components_xsd1 Drilldown into Allowance in schema components_xsd1 Drilldown into Charge in schema components_xsd1 Drilldown into Distribution in schema components_xsd1 Drilldown into Tax in schema components_xsd1 Drilldown into DistributedTax in schema components_xsd1 Drilldown into DistributedCharge in schema components_xsd1 Drilldown into PaymentTerm in schema components_xsd1 Drilldown into TransportationTerm in schema components_xsd1 Drilldown into LicenseIndicator in schema fields_xsd1 Drilldown into EarlyShipmentAllowedIndicator in schema fields_xsd1 Drilldown into DropShipmentAllowedIndicator in schema fields_xsd1 Drilldown into PartialShipmentAllowedIndicator in schema fields_xsd1 Drilldown into DrawingAttachment in schema components_xsd1 Drilldown into ShipToParty in schema components_xsd1 Drilldown into AllowSubstitutionIndicator in schema fields_xsd1 Drilldown into RequiredDeliveryDateTime in schema fields_xsd1 Drilldown into ContractReference in schema components_xsd1 Drilldown into CatalogReference in schema components_xsd1 Drilldown into QualifiedAmount in schema components_xsd1 Drilldown into TotalAmount in schema fields_xsd1 Drilldown into ExtendedAmount in schema fields_xsd1 Drilldown into UnitPrice in schema components_xsd1 Drilldown into Quantity in schema fields_xsd1 Drilldown into RFID in schema fields_xsd1 Drilldown into UID in schema fields_xsd1 Drilldown into SerializedLot in schema components_xsd1 Drilldown into SerialNumber in schema fields_xsd1 Drilldown into Item in schema components_xsd1 Drilldown into ItemInstanceGroup in schema components_xsd1 Drilldown into Status in schema components_xsd1 Drilldown into Attachment in schema components_xsd1 Drilldown into DocumentReference in schema components_xsd1 Drilldown into ReferencesGroup in schema components_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd1 Drilldown into LineType in schema components_xsd1 Drilldown into StatusEnabledLineType in schema components_xsd1 Drilldown into RequestLineType in schema ordermanagementcomponents_xsd Drilldown into ProcurementLineType in schema ordermanagementcomponents_xsdXSD Diagram of OrderLineType in schema ordermanagementcomponents_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="OrderLineType">
    <xsd:complexContent>
        <xsd:extension base="ProcurementLineType">
            <xsd:sequence>
                <xsd:element ref="FreightClassification" minOccurs="0" />
                <xsd:element ref="SpecialPriceAuthorizationCode" minOccurs="0" />
                <xsd:element ref="SubstituteItemIndicator" minOccurs="0" />
                <xsd:element ref="RequisitionReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="PromisedShipDateTime" minOccurs="0" />
                <xsd:element ref="PromisedDeliveryDateTime" minOccurs="0" />
                <xsd:element ref="ShippingInstructions" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber oa:LineNumber 0 (1)
Description oa:Description 0 unbounded
Note oa:Note 0 unbounded
DocumentReference oa:DocumentReference 0 unbounded
Attachment oa:Attachment 0 unbounded
Status oa:Status 0 unbounded
Item oa:Item 0 (1)
SerialNumber oa:SerialNumber 0 unbounded
SerializedLot oa:SerializedLot 0 unbounded
UID oa:UID 0 unbounded
RFID oa:RFID 0 unbounded
Quantity oa:Quantity 0 (1)
UnitPrice oa:UnitPrice 0 (1)
ExtendedAmount oa:ExtendedAmount 0 (1)
TotalAmount oa:TotalAmount 0 (1)
QualifiedAmount oa:QualifiedAmount 0 (1)
CatalogReference oa:CatalogReference 0 (1)
ContractReference oa:ContractReference 0 (1)
RequiredDeliveryDateTime oa:RequiredDeliveryDateTime 0 (1)
AllowSubstitutionIndicator oa:AllowSubstitutionIndicator 0 (1)
ShipToParty oa:ShipToParty 0 (1)
DrawingAttachment oa:DrawingAttachment 0 unbounded
PartialShipmentAllowedIndicator oa:PartialShipmentAllowedIndicator 0 (1)
DropShipmentAllowedIndicator oa:DropShipmentAllowedIndicator 0 (1)
EarlyShipmentAllowedIndicator oa:EarlyShipmentAllowedIndicator 0 (1)
LicenseIndicator oa:LicenseIndicator 0 unbounded
TransportationTerm oa:TransportationTerm 0 unbounded
PaymentTerm oa:PaymentTerm 0 unbounded
DistributedCharge oa:DistributedCharge 0 unbounded
DistributedTax oa:DistributedTax 0 unbounded
Tax oa:Tax 0 unbounded
Distribution oa:Distribution 0 unbounded
Charge oa:Charge 0 unbounded
Allowance oa:Allowance 0 unbounded
FreightClassification oa:FreightClassification 0 (1)
SpecialPriceAuthorizationCode oa:SpecialPriceAuthorizationCode 0 (1)
SubstituteItemIndicator oa:SubstituteItemIndicator 0 (1)
RequisitionReference oa:RequisitionReference 0 unbounded
PromisedShipDateTime oa:PromisedShipDateTime 0 (1)
PromisedDeliveryDateTime oa:PromisedDeliveryDateTime 0 (1)
ShippingInstructions oa:ShippingInstructions 0 unbounded
<xs:group> oa:FreeFormTextGroup 0 (1)
<xs:group> oa:ReferencesGroup 0 (1)
<xs:group> oa:ItemInstanceGroup 0 (1)
Collapse Derivation Tree:
