Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: MemberPositionType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
Contains basic information about a position located within (a "member" of) a particular organization unit.

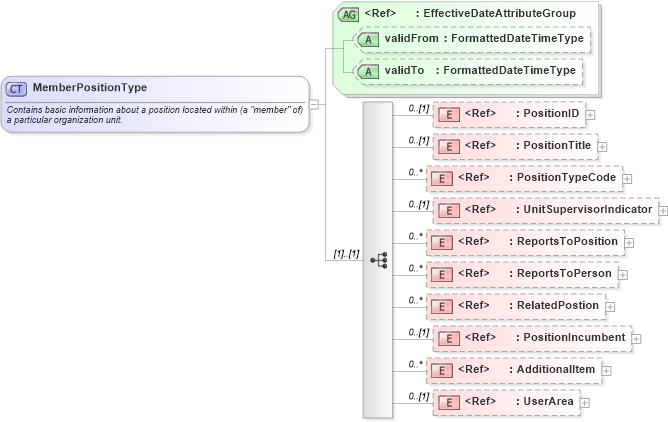

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into AdditionalItem in schema components_xsd Drilldown into PositionIncumbent in schema components_xsd Drilldown into RelatedPostion in schema components_xsd Drilldown into ReportsToPerson in schema components_xsd Drilldown into ReportsToPosition in schema components_xsd Drilldown into UnitSupervisorIndicator in schema fields_xsd Drilldown into PositionTypeCode in schema fields_xsd Drilldown into PositionTitle in schema fields_xsd Drilldown into PositionID in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of MemberPositionType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="MemberPositionType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">Contains basic information about a position located within (a "member" of) a particular organization unit.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="PositionID" minOccurs="0" />
        <xsd:element ref="PositionTitle" minOccurs="0" />
        <xsd:element ref="PositionTypeCode" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UnitSupervisorIndicator" minOccurs="0" />
        <xsd:element ref="ReportsToPosition" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ReportsToPerson" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="RelatedPostion" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PositionIncumbent" minOccurs="0" />
        <xsd:element ref="AdditionalItem" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PositionID nsA:PositionID 0 (1)
PositionTitle nsA:PositionTitle 0 (1)
PositionTypeCode nsA:PositionTypeCode 0 unbounded
UnitSupervisorIndicator nsA:UnitSupervisorIndicator 0 (1)
ReportsToPosition nsA:ReportsToPosition 0 unbounded
ReportsToPerson nsA:ReportsToPerson 0 unbounded
RelatedPostion nsA:RelatedPostion 0 unbounded
PositionIncumbent nsA:PositionIncumbent 0 (1)
AdditionalItem nsA:AdditionalItem 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:MemberPosition
