Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: ReportsToPerson
Namespace: http://www.hr-xml.org/3
Type: nsA:ReportsToPersonType
Containing Schema: Components.xsd
Abstract

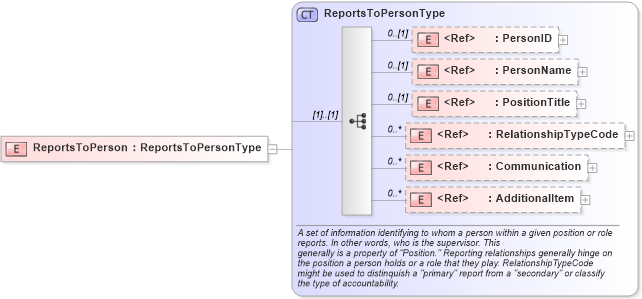

Collapse XSD Schema Diagram:
Drilldown into AdditionalItem in schema components_xsd Drilldown into Communication in schema components_xsd Drilldown into RelationshipTypeCode in schema fields_xsd Drilldown into PositionTitle in schema fields_xsd Drilldown into PersonName in schema components_xsd Drilldown into PersonID in schema fields_xsd Drilldown into ReportsToPersonType in schema components_xsdXSD Diagram of ReportsToPerson in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="ReportsToPerson" type="ReportsToPersonType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PersonID nsA:PersonID 0 (1)
PersonName nsA:PersonName 0 (1)
PositionTitle nsA:PositionTitle 0 (1)
RelationshipTypeCode nsA:RelationshipTypeCode 0 unbounded
Communication nsA:Communication 0 unbounded
AdditionalItem nsA:AdditionalItem 0 unbounded
Collapse Derivation Tree:
