Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: PersonName
Namespace: http://www.hr-xml.org/3
Type: nsA:PersonNameType
Containing Schema: Components.xsd
Abstract
Documentation:
Person Name. Details A component for capturing summary or fine-grain data comprising a person's name.

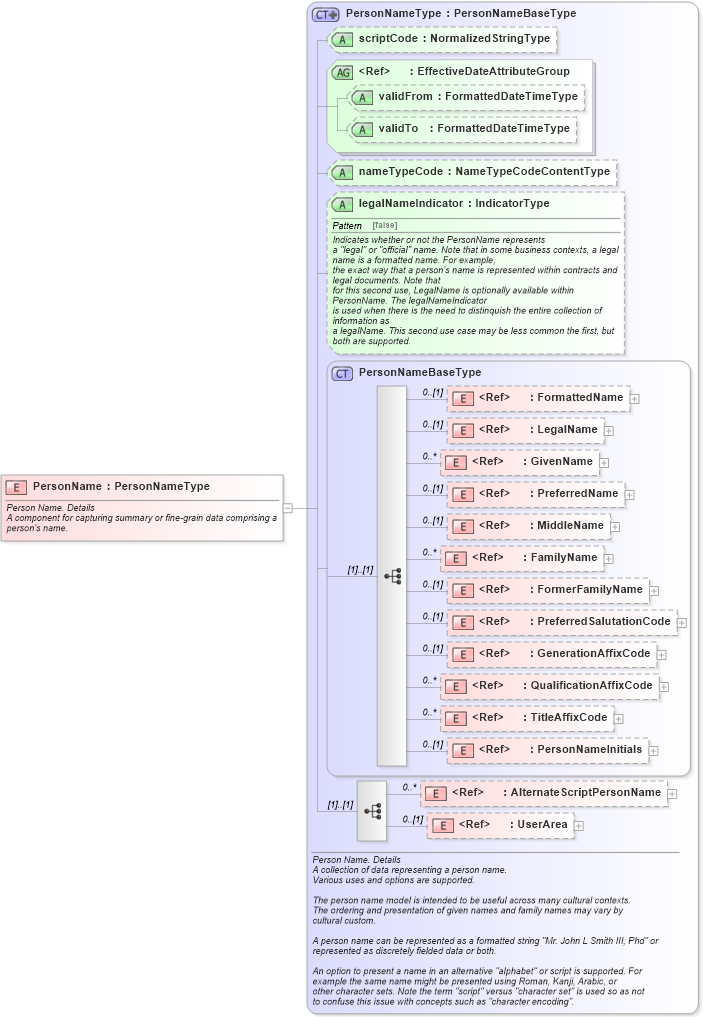

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into AlternateScriptPersonName in schema components_xsd Drilldown into PersonNameInitials in schema fields_xsd Drilldown into TitleAffixCode in schema fields_xsd Drilldown into QualificationAffixCode in schema fields_xsd Drilldown into GenerationAffixCode in schema fields_xsd Drilldown into PreferredSalutationCode in schema fields_xsd Drilldown into FormerFamilyName in schema fields_xsd Drilldown into FamilyName in schema fields_xsd Drilldown into MiddleName in schema fields_xsd Drilldown into PreferredName in schema fields_xsd Drilldown into GivenName in schema fields_xsd1 Drilldown into LegalName in schema fields_xsd Drilldown into FormattedName in schema fields_xsd Drilldown into PersonNameBaseType in schema components_xsd Drilldown into legalNameIndicator in schema components_xsd Drilldown into nameTypeCode in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into scriptCode in schema components_xsd Drilldown into PersonNameType in schema components_xsdXSD Diagram of PersonName in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="PersonName" type="PersonNameType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Person Name. Details</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">A component for capturing summary or fine-grain data comprising a person's name.</ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FormattedName nsA:FormattedName 0 (1)
LegalName nsA:LegalName 0 (1)
GivenName oa:GivenName 0 unbounded
PreferredName nsA:PreferredName 0 (1)
MiddleName nsA:MiddleName 0 (1)
FamilyName nsA:FamilyName 0 unbounded
FormerFamilyName nsA:FormerFamilyName 0 (1)
PreferredSalutationCode nsA:PreferredSalutationCode 0 (1)
GenerationAffixCode nsA:GenerationAffixCode 0 (1)
QualificationAffixCode nsA:QualificationAffixCode 0 unbounded
TitleAffixCode nsA:TitleAffixCode 0 unbounded
PersonNameInitials nsA:PersonNameInitials 0 (1)
AlternateScriptPersonName nsA:AlternateScriptPersonName 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
scriptCode nsA:scriptCode Optional
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
nameTypeCode nsA:nameTypeCode Optional
legalNameIndicator nsA:legalNameIndicator Optional
Collapse Derivation Tree:
