Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: NotificationMethod
Namespace: http://www.hr-xml.org/3
Type: nsA:CommunicationABIEType
Containing Schema: Components.xsd
Abstract

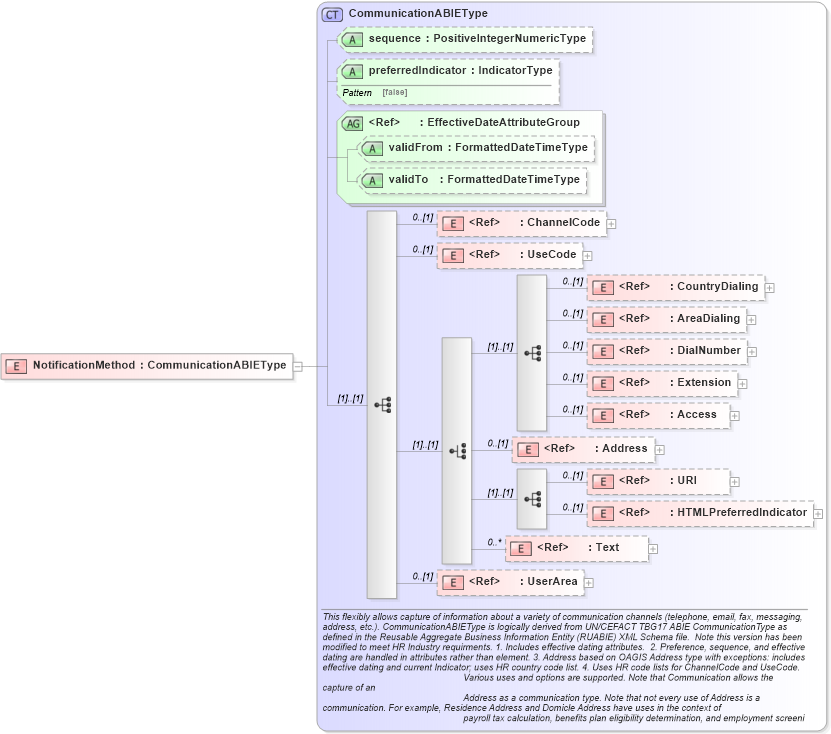

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Text in schema fields_xsd1 Drilldown into HTMLPreferredIndicator in schema fields_xsd1 Drilldown into URI in schema fields_xsd1 Drilldown into Address in schema components_xsd Drilldown into Access in schema fields_xsd1 Drilldown into Extension in schema fields_xsd1 Drilldown into DialNumber in schema fields_xsd1 Drilldown into AreaDialing in schema fields_xsd1 Drilldown into CountryDialing in schema fields_xsd1 Drilldown into UseCode in schema fields_xsd Drilldown into ChannelCode in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into preferredIndicator in schema components_xsd Drilldown into sequence in schema components_xsd Drilldown into CommunicationABIEType in schema components_xsdXSD Diagram of NotificationMethod in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="NotificationMethod" type="CommunicationABIEType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ChannelCode nsA:ChannelCode 0 (1)
UseCode nsA:UseCode 0 (1)
CountryDialing oa:CountryDialing 0 (1)
AreaDialing oa:AreaDialing 0 (1)
DialNumber oa:DialNumber 0 (1)
Extension oa:Extension 0 (1)
Access oa:Access 0 (1)
Address nsA:Address 0 (1)
URI oa:URI 0 (1)
HTMLPreferredIndicator oa:HTMLPreferredIndicator 0 (1)
Text oa:Text 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
sequence nsA:sequence (Optional)
preferredIndicator nsA:preferredIndicator (Optional)
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
