Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: PackageResultType
Namespace: http://www.hr-xml.org/3
Containing Schema: ScreeningPackageReport.xsd
Abstract

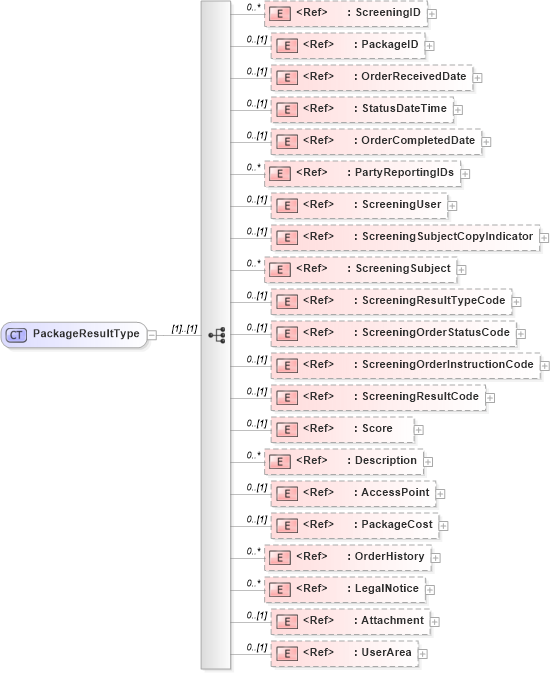

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Attachment in schema components_xsd Drilldown into LegalNotice in schema components_xsd Drilldown into OrderHistory in schema components_xsd Drilldown into PackageCost in schema components_xsd Drilldown into AccessPoint in schema components_xsd Drilldown into Description in schema fields_xsd1 Drilldown into Score in schema components_xsd Drilldown into ScreeningResultCode in schema fields_xsd Drilldown into ScreeningOrderInstructionCode in schema fields_xsd Drilldown into ScreeningOrderStatusCode in schema fields_xsd Drilldown into ScreeningResultTypeCode in schema fields_xsd Drilldown into ScreeningSubject in schema components_xsd Drilldown into ScreeningSubjectCopyIndicator in schema fields_xsd Drilldown into ScreeningUser in schema components_xsd Drilldown into PartyReportingIDs in schema components_xsd Drilldown into OrderCompletedDate in schema fields_xsd Drilldown into StatusDateTime in schema fields_xsd Drilldown into OrderReceivedDate in schema fields_xsd Drilldown into PackageID in schema fields_xsd Drilldown into ScreeningID in schema fields_xsdXSD Diagram of PackageResultType in schema screeningpackagereport_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="PackageResultType">
    <xsd:sequence>
        <xsd:element ref="ScreeningID" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PackageID" minOccurs="0" />
        <xsd:element ref="OrderReceivedDate" minOccurs="0" />
        <xsd:element ref="StatusDateTime" minOccurs="0" />
        <xsd:element ref="OrderCompletedDate" minOccurs="0" />
        <xsd:element ref="PartyReportingIDs" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ScreeningUser" minOccurs="0" />
        <xsd:element ref="ScreeningSubjectCopyIndicator" minOccurs="0" />
        <xsd:element ref="ScreeningSubject" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ScreeningResultTypeCode" minOccurs="0" />
        <xsd:element ref="ScreeningOrderStatusCode" minOccurs="0" />
        <xsd:element ref="ScreeningOrderInstructionCode" minOccurs="0" />
        <xsd:element ref="ScreeningResultCode" minOccurs="0" />
        <xsd:element ref="Score" minOccurs="0" />
        <xsd:element ref="oa:Description" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="AccessPoint" minOccurs="0" />
        <xsd:element ref="PackageCost" minOccurs="0" />
        <xsd:element ref="OrderHistory" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="LegalNotice" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Attachment" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ScreeningID nsA:ScreeningID 0 unbounded
PackageID nsA:PackageID 0 (1)
OrderReceivedDate nsA:OrderReceivedDate 0 (1)
StatusDateTime nsA:StatusDateTime 0 (1)
OrderCompletedDate nsA:OrderCompletedDate 0 (1)
PartyReportingIDs nsA:PartyReportingIDs 0 unbounded
ScreeningUser nsA:ScreeningUser 0 (1)
ScreeningSubjectCopyIndicator nsA:ScreeningSubjectCopyIndicator 0 (1)
ScreeningSubject nsA:ScreeningSubject 0 unbounded
ScreeningResultTypeCode nsA:ScreeningResultTypeCode 0 (1)
ScreeningOrderStatusCode nsA:ScreeningOrderStatusCode 0 (1)
ScreeningOrderInstructionCode nsA:ScreeningOrderInstructionCode 0 (1)
ScreeningResultCode nsA:ScreeningResultCode 0 (1)
Score nsA:Score 0 (1)
Description oa:Description 0 unbounded
AccessPoint nsA:AccessPoint 0 (1)
PackageCost nsA:PackageCost 0 (1)
OrderHistory nsA:OrderHistory 0 unbounded
LegalNotice nsA:LegalNotice 0 unbounded
Attachment nsA:Attachment 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:PackageResult
