Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: PackagingType
Namespace: http://www.openapplications.org/oagis/9
Type: oa:PackagingBaseType
Containing Schema: Components.xsd
Abstract

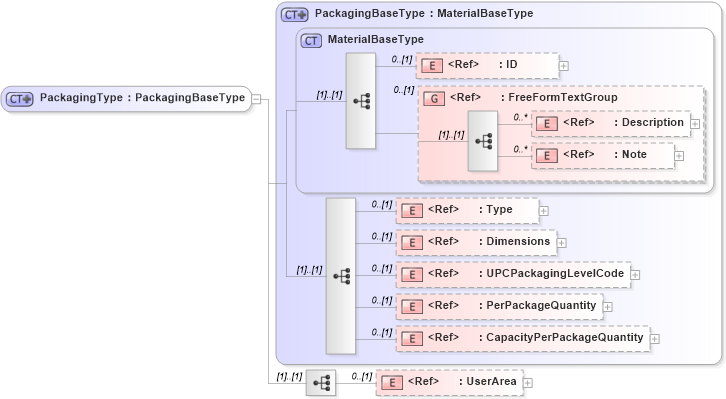

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd1 Drilldown into CapacityPerPackageQuantity in schema fields_xsd1 Drilldown into PerPackageQuantity in schema fields_xsd1 Drilldown into UPCPackagingLevelCode in schema fields_xsd1 Drilldown into Dimensions in schema components_xsd1 Drilldown into Type in schema fields_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into ID in schema fields_xsd1 Drilldown into MaterialBaseType in schema components_xsd1 Drilldown into PackagingBaseType in schema components_xsd1XSD Diagram of PackagingType in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="PackagingType">
    <xsd:complexContent>
        <xsd:extension base="PackagingBaseType">
            <xsd:sequence>
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID oa:ID 0 (1)
Description oa:Description 0 unbounded
Note oa:Note 0 unbounded
Type oa:Type 0 (1)
Dimensions oa:Dimensions 0 (1)
UPCPackagingLevelCode oa:UPCPackagingLevelCode 0 (1)
PerPackageQuantity oa:PerPackageQuantity 0 (1)
CapacityPerPackageQuantity oa:CapacityPerPackageQuantity 0 (1)
UserArea oa:UserArea 0 (1)
<xs:group> oa:FreeFormTextGroup 0 (1)
Collapse Derivation Tree:
Collapse References:
oa:Packaging, oa:UnitPackaging
