Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: PaymentType
Namespace: http://www.openapplications.org/oagis/9
Type: oa:PaymentBaseType
Containing Schema: Components.xsd
Abstract

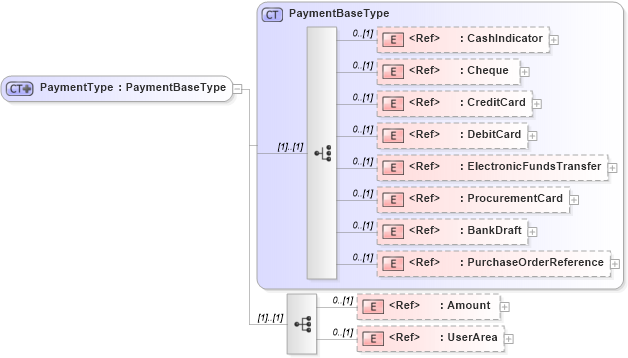

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd1 Drilldown into Amount in schema fields_xsd1 Drilldown into PurchaseOrderReference in schema components_xsd1 Drilldown into BankDraft in schema components_xsd1 Drilldown into ProcurementCard in schema components_xsd1 Drilldown into ElectronicFundsTransfer in schema components_xsd1 Drilldown into DebitCard in schema components_xsd1 Drilldown into CreditCard in schema components_xsd1 Drilldown into Cheque in schema components_xsd1 Drilldown into CashIndicator in schema fields_xsd1 Drilldown into PaymentBaseType in schema components_xsd1XSD Diagram of PaymentType in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="PaymentType">
    <xsd:complexContent>
        <xsd:extension base="PaymentBaseType">
            <xsd:sequence>
                <xsd:element ref="Amount" minOccurs="0" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CashIndicator oa:CashIndicator 0 (1)
Cheque oa:Cheque 0 (1)
CreditCard oa:CreditCard 0 (1)
DebitCard oa:DebitCard 0 (1)
ElectronicFundsTransfer oa:ElectronicFundsTransfer 0 (1)
ProcurementCard oa:ProcurementCard 0 (1)
BankDraft oa:BankDraft 0 (1)
PurchaseOrderReference oa:PurchaseOrderReference 0 (1)
Amount oa:Amount 0 (1)
UserArea oa:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
oa:Payment
