Definition Type: ComplexType
Name: PositionIncumbentType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
Contains information identifying the person who is currently serving in the associated position.

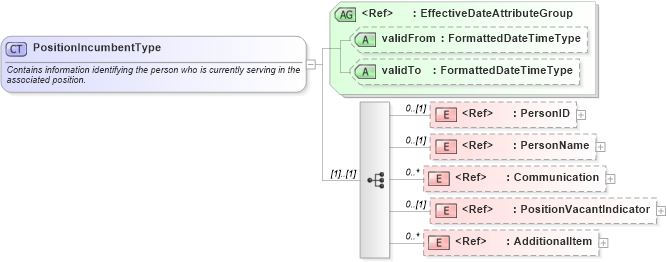

Collapse XSD Schema Diagram:
Drilldown into AdditionalItem in schema components_xsd Drilldown into PositionVacantIndicator in schema fields_xsd Drilldown into Communication in schema components_xsd Drilldown into PersonName in schema components_xsd Drilldown into PersonID in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of PositionIncumbentType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="PositionIncumbentType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">Contains information identifying the person who is currently serving in the associated position.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="PersonID" minOccurs="0" />
        <xsd:element ref="PersonName" minOccurs="0" />
        <xsd:element ref="Communication" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PositionVacantIndicator" minOccurs="0" />
        <xsd:element ref="AdditionalItem" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PersonID nsA:PersonID 0 (1)
PersonName nsA:PersonName 0 (1)
Communication nsA:Communication 0 unbounded
PositionVacantIndicator nsA:PositionVacantIndicator 0 (1)
AdditionalItem nsA:AdditionalItem 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:PositionIncumbent
