Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: ScreeningResultCodeType
Namespace: http://www.hr-xml.org/3
Type: nsA:ScreeningResultCodeContentType
Containing Schema: Fields.xsd
Abstract
Documentation:
A set of codes classifying a Screening Order result. This is an HR-XML Open list.

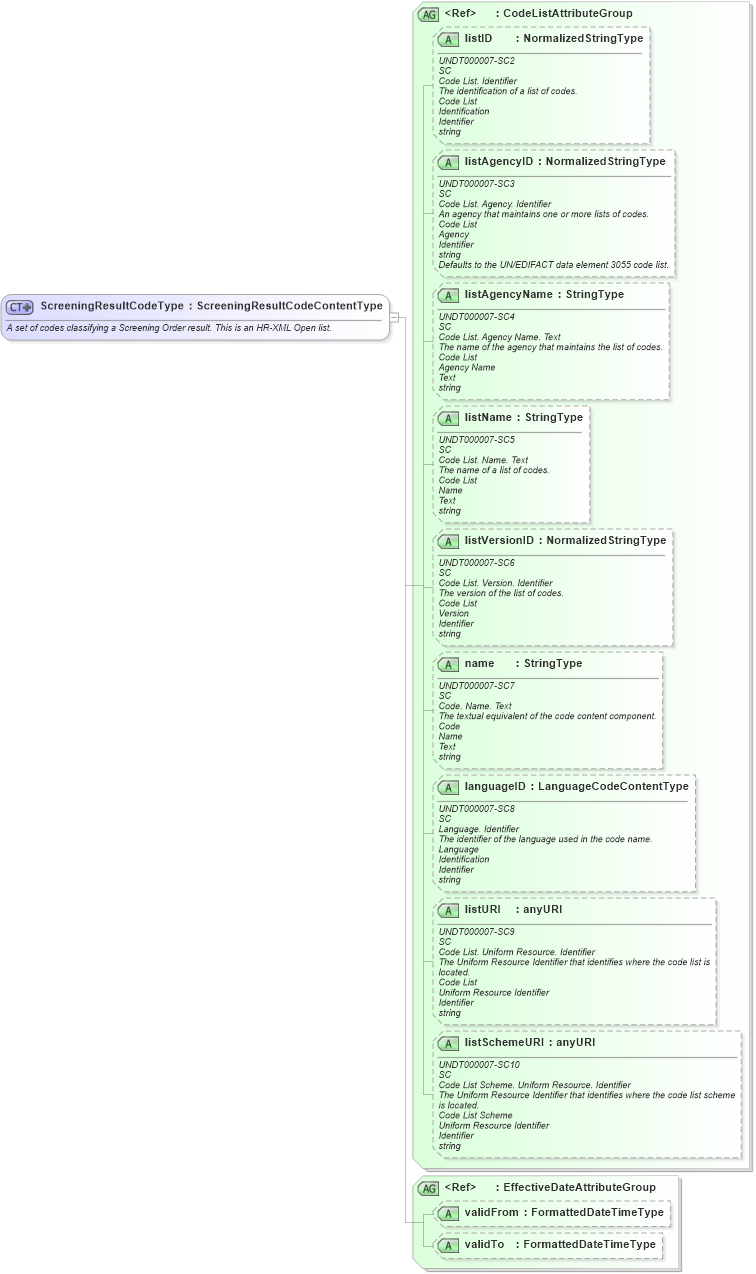

Collapse XSD Schema Diagram:
Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into listSchemeURI in schema fields_xsd1 Drilldown into listURI in schema fields_xsd1 Drilldown into languageID in schema fields_xsd1 Drilldown into name in schema fields_xsd1 Drilldown into listVersionID in schema fields_xsd1 Drilldown into listName in schema fields_xsd1 Drilldown into listAgencyName in schema fields_xsd1 Drilldown into listAgencyID in schema fields_xsd1 Drilldown into listID in schema fields_xsd1 Drilldown into CodeListAttributeGroup in schema fields_xsd1XSD Diagram of ScreeningResultCodeType in schema fields_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ScreeningResultCodeType">
    <xsd:annotation>
        <xsd:documentation>A set of codes classifying a Screening Order result. This is an HR-XML Open list.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:extension base="ScreeningResultCodeContentType">
            <xsd:attributeGroup ref="oa:CodeListAttributeGroup" />
            <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
        </xsd:extension>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
listID oa:listID Optional
listAgencyID oa:listAgencyID Optional
listAgencyName oa:listAgencyName Optional
listName oa:listName Optional
listVersionID oa:listVersionID Optional
name oa:name Optional
languageID oa:languageID Optional
listURI oa:listURI Optional
listSchemeURI oa:listSchemeURI Optional
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:ScreeningResultCode
