Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: ScreeningTestReasonCodeType
Namespace: http://www.hr-xml.org/3
Type: nsA:ScreeningTestReasonCodeContentType
Containing Schema: Fields.xsd
Abstract
Documentation:
An open list of reason codes describing the condition triggering the substance testing process. This is an HR-XML open list.

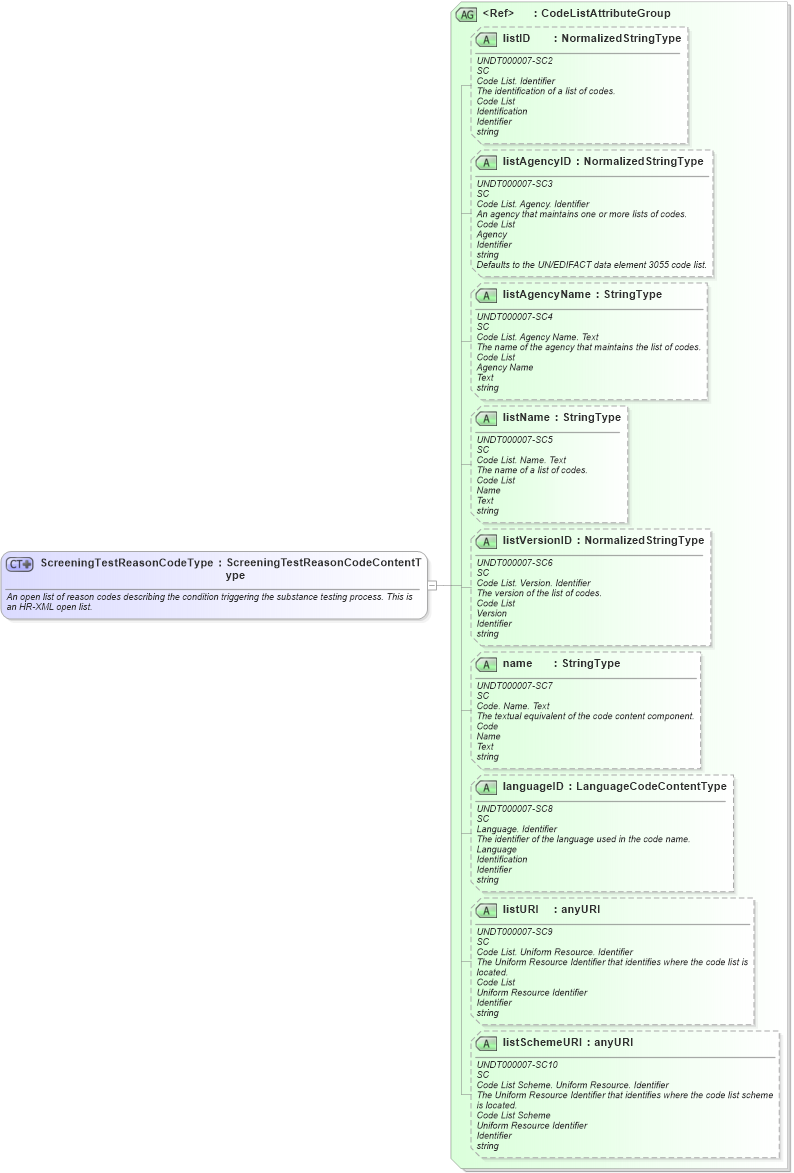

Collapse XSD Schema Diagram:
Drilldown into listSchemeURI in schema fields_xsd1 Drilldown into listURI in schema fields_xsd1 Drilldown into languageID in schema fields_xsd1 Drilldown into name in schema fields_xsd1 Drilldown into listVersionID in schema fields_xsd1 Drilldown into listName in schema fields_xsd1 Drilldown into listAgencyName in schema fields_xsd1 Drilldown into listAgencyID in schema fields_xsd1 Drilldown into listID in schema fields_xsd1 Drilldown into CodeListAttributeGroup in schema fields_xsd1XSD Diagram of ScreeningTestReasonCodeType in schema fields_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ScreeningTestReasonCodeType">
    <xsd:annotation>
        <xsd:documentation>An open list of reason codes describing the condition triggering the substance testing process. This is an HR-XML open list.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:extension base="ScreeningTestReasonCodeContentType">
            <xsd:attributeGroup ref="oa:CodeListAttributeGroup" />
        </xsd:extension>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
listID oa:listID Optional
listAgencyID oa:listAgencyID Optional
listAgencyName oa:listAgencyName Optional
listName oa:listName Optional
listVersionID oa:listVersionID Optional
name oa:name Optional
languageID oa:languageID Optional
listURI oa:listURI Optional
listSchemeURI oa:listSchemeURI Optional
Collapse Derivation Tree:
Collapse References:
nsA:AlcoholTestReasonCode, nsA:DrugTestReasonCode
