Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: SpendingAccountCoverage
Namespace: http://www.hr-xml.org/3
Type: nsA:SpendingAccountCoverageType
Containing Schema: Components.xsd
Abstract

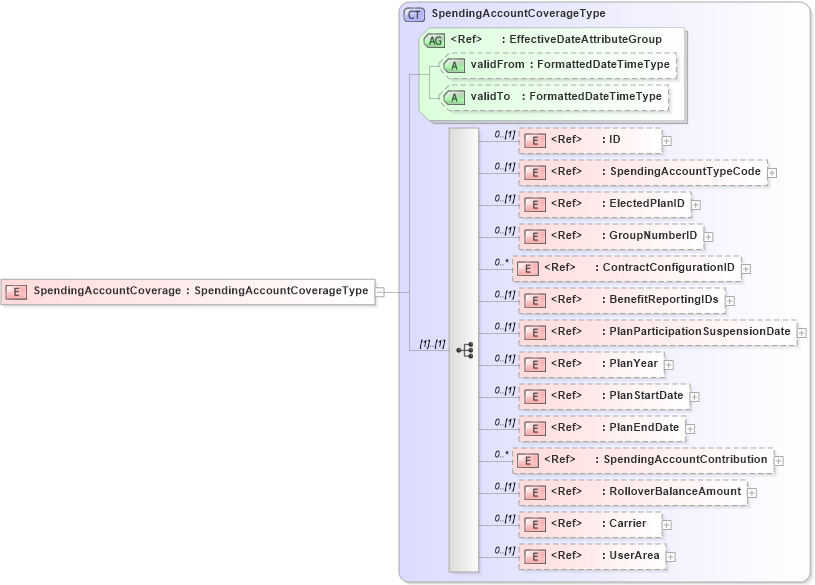

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Carrier in schema components_xsd Drilldown into RolloverBalanceAmount in schema fields_xsd Drilldown into SpendingAccountContribution in schema components_xsd Drilldown into PlanEndDate in schema fields_xsd Drilldown into PlanStartDate in schema fields_xsd Drilldown into PlanYear in schema fields_xsd Drilldown into PlanParticipationSuspensionDate in schema fields_xsd Drilldown into BenefitReportingIDs in schema components_xsd Drilldown into ContractConfigurationID in schema fields_xsd Drilldown into GroupNumberID in schema fields_xsd Drilldown into ElectedPlanID in schema fields_xsd Drilldown into SpendingAccountTypeCode in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into SpendingAccountCoverageType in schema components_xsdXSD Diagram of SpendingAccountCoverage in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="SpendingAccountCoverage" type="SpendingAccountCoverageType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
SpendingAccountTypeCode nsA:SpendingAccountTypeCode 0 (1)
ElectedPlanID nsA:ElectedPlanID 0 (1)
GroupNumberID nsA:GroupNumberID 0 (1)
ContractConfigurationID nsA:ContractConfigurationID 0 unbounded
BenefitReportingIDs nsA:BenefitReportingIDs 0 (1)
PlanParticipationSuspensionDate nsA:PlanParticipationSuspensionDate 0 (1)
PlanYear nsA:PlanYear 0 (1)
PlanStartDate nsA:PlanStartDate 0 (1)
PlanEndDate nsA:PlanEndDate 0 (1)
SpendingAccountContribution nsA:SpendingAccountContribution 0 unbounded
RolloverBalanceAmount nsA:RolloverBalanceAmount 0 (1)
Carrier nsA:Carrier 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
