Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: SpendingAccountCoverageType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract

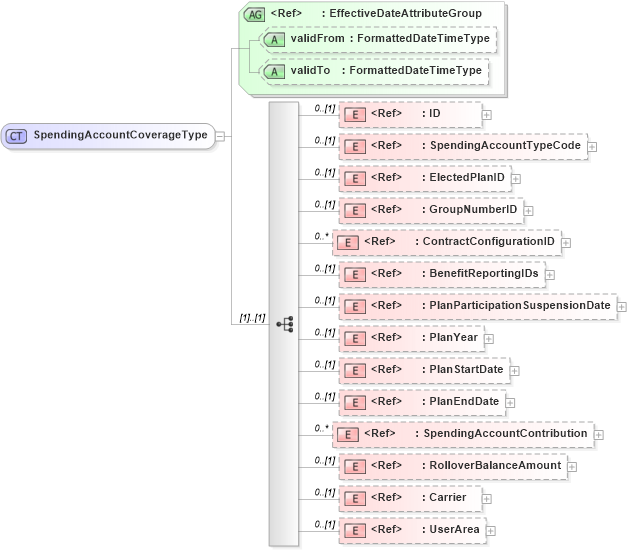

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Carrier in schema components_xsd Drilldown into RolloverBalanceAmount in schema fields_xsd Drilldown into SpendingAccountContribution in schema components_xsd Drilldown into PlanEndDate in schema fields_xsd Drilldown into PlanStartDate in schema fields_xsd Drilldown into PlanYear in schema fields_xsd Drilldown into PlanParticipationSuspensionDate in schema fields_xsd Drilldown into BenefitReportingIDs in schema components_xsd Drilldown into ContractConfigurationID in schema fields_xsd Drilldown into GroupNumberID in schema fields_xsd Drilldown into ElectedPlanID in schema fields_xsd Drilldown into SpendingAccountTypeCode in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of SpendingAccountCoverageType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="SpendingAccountCoverageType">
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" />
        <xsd:element ref="SpendingAccountTypeCode" minOccurs="0" />
        <xsd:element ref="ElectedPlanID" minOccurs="0" />
        <xsd:element ref="GroupNumberID" minOccurs="0" />
        <xsd:element ref="ContractConfigurationID" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="BenefitReportingIDs" minOccurs="0" />
        <xsd:element ref="PlanParticipationSuspensionDate" minOccurs="0" />
        <xsd:element ref="PlanYear" minOccurs="0" />
        <xsd:element ref="PlanStartDate" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">The PlanStartDate and PlanEndDate components are typically used to communicate a partial plan-year or plan period other than a year.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="PlanEndDate" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">The PlanStartDate and PlanEndDate components are typically used to communicate a partial plan-year or plan period other than a year.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="SpendingAccountContribution" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="RolloverBalanceAmount" minOccurs="0" />
        <xsd:element ref="Carrier" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
SpendingAccountTypeCode nsA:SpendingAccountTypeCode 0 (1)
ElectedPlanID nsA:ElectedPlanID 0 (1)
GroupNumberID nsA:GroupNumberID 0 (1)
ContractConfigurationID nsA:ContractConfigurationID 0 unbounded
BenefitReportingIDs nsA:BenefitReportingIDs 0 (1)
PlanParticipationSuspensionDate nsA:PlanParticipationSuspensionDate 0 (1)
PlanYear nsA:PlanYear 0 (1)
PlanStartDate nsA:PlanStartDate 0 (1)
PlanEndDate nsA:PlanEndDate 0 (1)
SpendingAccountContribution nsA:SpendingAccountContribution 0 unbounded
RolloverBalanceAmount nsA:RolloverBalanceAmount 0 (1)
Carrier nsA:Carrier 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:SpendingAccountCoverage
