Definition Type: ComplexType
Name: SubscriberDependentType
Namespace: http://www.hr-xml.org/3
Type: nsA:DependentPersonDossierBaseType
Containing Schema: USEnrollment.xsd
Abstract
Collapse XSD Schema Diagram:

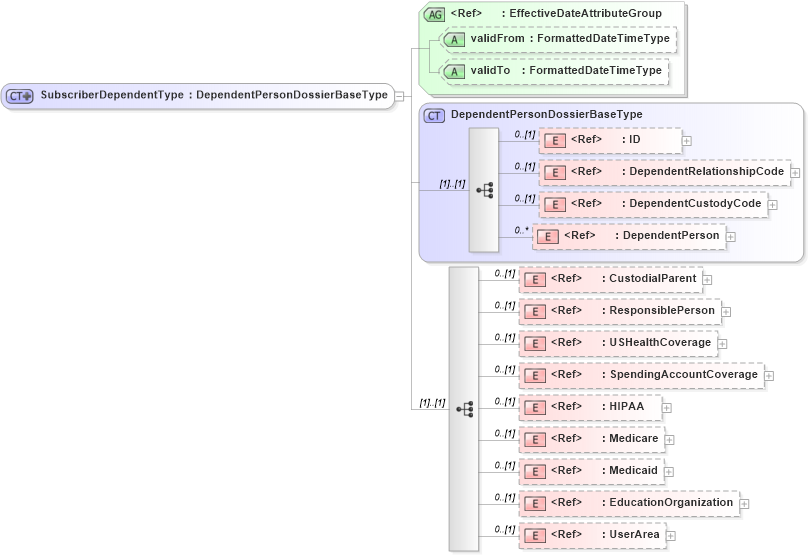

Drilldown into UserArea in schema fields_xsd Drilldown into EducationOrganization in schema components_xsd Drilldown into Medicaid in schema usenrollment_xsd Drilldown into Medicare in schema usenrollment_xsd Drilldown into HIPAA in schema usenrollment_xsd Drilldown into SpendingAccountCoverage in schema components_xsd Drilldown into USHealthCoverage in schema components_xsd Drilldown into ResponsiblePerson in schema components_xsd Drilldown into CustodialParent in schema components_xsd Drilldown into DependentPerson in schema components_xsd Drilldown into DependentCustodyCode in schema fields_xsd Drilldown into DependentRelationshipCode in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into DependentPersonDossierBaseType in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of SubscriberDependentType in schema usenrollment_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="SubscriberDependentType">
    <xsd:complexContent>
        <xsd:extension base="DependentPersonDossierBaseType">
            <xsd:sequence>
                <xsd:element ref="CustodialParent" minOccurs="0" />
                <xsd:element ref="ResponsiblePerson" minOccurs="0" />
                <xsd:element ref="USHealthCoverage" minOccurs="0" />
                <xsd:element ref="SpendingAccountCoverage" minOccurs="0" />
                <xsd:element ref="HIPAA" minOccurs="0" />
                <xsd:element ref="Medicare" minOccurs="0" />
                <xsd:element ref="Medicaid" minOccurs="0" />
                <xsd:element ref="EducationOrganization" minOccurs="0" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
            <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
DependentRelationshipCode nsA:DependentRelationshipCode 0 (1)
DependentCustodyCode nsA:DependentCustodyCode 0 (1)
DependentPerson nsA:DependentPerson 0 unbounded
CustodialParent nsA:CustodialParent 0 (1)
ResponsiblePerson nsA:ResponsiblePerson 0 (1)
USHealthCoverage nsA:USHealthCoverage 0 (1)
SpendingAccountCoverage nsA:SpendingAccountCoverage 0 (1)
HIPAA nsA:HIPAA 0 (1)
Medicare nsA:Medicare 0 (1)
Medicaid nsA:Medicaid 0 (1)
EducationOrganization nsA:EducationOrganization 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:SubscriberDependent
