Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: TimeCardReportedItemType
Namespace: http://www.hr-xml.org/3
Containing Schema: TimeCard.xsd
Abstract
Documentation:
Contains data on a period of work, time event, expense, or allowance that is being reported within a time card.

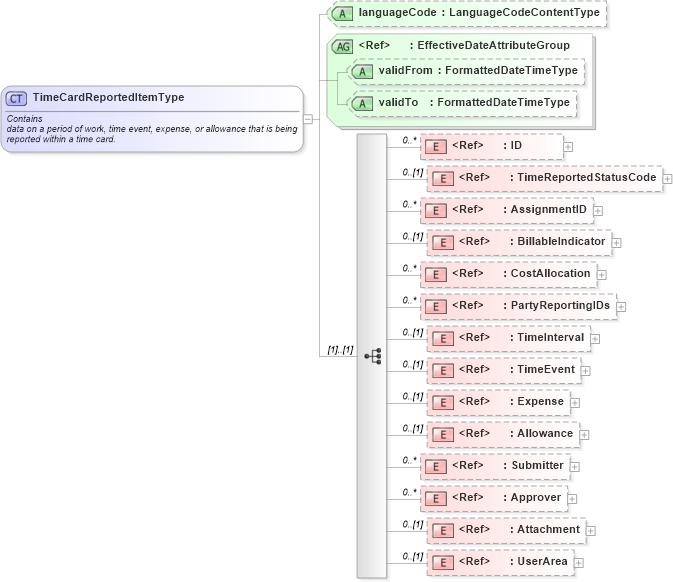

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Attachment in schema components_xsd Drilldown into Approver in schema components_xsd Drilldown into Submitter in schema components_xsd Drilldown into Allowance in schema timecard_xsd Drilldown into Expense in schema timecard_xsd Drilldown into TimeEvent in schema timecard_xsd Drilldown into TimeInterval in schema timecard_xsd Drilldown into PartyReportingIDs in schema components_xsd Drilldown into CostAllocation in schema components_xsd Drilldown into BillableIndicator in schema fields_xsd Drilldown into AssignmentID in schema fields_xsd Drilldown into TimeReportedStatusCode in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into languageCode in schema timecard_xsdXSD Diagram of TimeCardReportedItemType in schema timecard_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="TimeCardReportedItemType">
    <xsd:annotation>
        <xsd:documentation>Contains
		data on a period of work, time event, expense, or allowance that is being reported within a time card.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="TimeReportedStatusCode" minOccurs="0" />
        <xsd:element ref="AssignmentID" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="BillableIndicator" minOccurs="0" />
        <xsd:element ref="CostAllocation" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PartyReportingIDs" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="TimeInterval" minOccurs="0" />
        <xsd:element ref="TimeEvent" minOccurs="0" />
        <xsd:element ref="Expense" minOccurs="0" />
        <xsd:element ref="Allowance" minOccurs="0" />
        <xsd:element ref="Submitter" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Approver" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Attachment" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="languageCode" type="LanguageCodeContentType" use="optional" />
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 unbounded
TimeReportedStatusCode nsA:TimeReportedStatusCode 0 (1)
AssignmentID nsA:AssignmentID 0 unbounded
BillableIndicator nsA:BillableIndicator 0 (1)
CostAllocation nsA:CostAllocation 0 unbounded
PartyReportingIDs nsA:PartyReportingIDs 0 unbounded
TimeInterval nsA:TimeInterval 0 (1)
TimeEvent nsA:TimeEvent 0 (1)
Expense nsA:Expense 0 (1)
Allowance nsA:Allowance 0 (1)
Submitter nsA:Submitter 0 unbounded
Approver nsA:Approver 0 unbounded
Attachment nsA:Attachment 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode nsA:languageCode Optional
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:TimeCardReportedItem
