Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: UserAccount
Namespace: http://www.openapplications.org/oagis/9
Type: oa:UserAccountType
Containing Schema: Components.xsd
Abstract

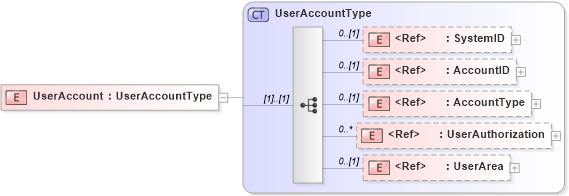

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd1 Drilldown into UserAuthorization in schema components_xsd1 Drilldown into AccountType in schema fields_xsd1 Drilldown into AccountID in schema fields_xsd1 Drilldown into SystemID in schema fields_xsd1 Drilldown into UserAccountType in schema components_xsd1XSD Diagram of UserAccount in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="UserAccount" type="UserAccountType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SystemID oa:SystemID 0 (1)
AccountID oa:AccountID 0 (1)
AccountType oa:AccountType 0 (1)
UserAuthorization oa:UserAuthorization 0 unbounded
UserArea oa:UserArea 0 (1)
Collapse Derivation Tree:
