<element name="alert">
<annotation>
<documentation>CAP Alert Message (version 1.1)</documentation>
</annotation>
<complexType>
<sequence>
<element name="identifier" type="string" />
<element name="sender" type="string" />
<element name="sent" type="dateTime" />
<element name="status">
<simpleType>
<restriction base="string">
<enumeration value="Actual" />
<enumeration value="Exercise" />
<enumeration value="System" />
<enumeration value="Test" />
<enumeration value="Draft" />
</restriction>
</simpleType>
</element>
<element name="msgType">
<simpleType>
<restriction base="string">
<enumeration value="Alert" />
<enumeration value="Update" />
<enumeration value="Cancel" />
<enumeration value="Ack" />
<enumeration value="Error" />
</restriction>
</simpleType>
</element>
<element name="source" type="string" minOccurs="0" />
<element name="scope">
<simpleType>
<restriction base="string">
<enumeration value="Public" />
<enumeration value="Restricted" />
<enumeration value="Private" />
</restriction>
</simpleType>
</element>
<element name="restriction" type="string" minOccurs="0" />
<element name="addresses" type="string" minOccurs="0" />
<element name="code" type="string" minOccurs="0" maxOccurs="unbounded" />
<element name="note" type="string" minOccurs="0" />
<element name="references" type="string" minOccurs="0" />
<element name="incidents" type="string" minOccurs="0" />
<element name="info" minOccurs="0" maxOccurs="unbounded">
<complexType>
<sequence>
<element name="language" type="language" default="en-US" minOccurs="0" />
<element name="category" maxOccurs="unbounded">
<simpleType>
<restriction base="string">
<enumeration value="Geo" />
<enumeration value="Met" />
<enumeration value="Safety" />
<enumeration value="Security" />
<enumeration value="Rescue" />
<enumeration value="Fire" />
<enumeration value="Health" />
<enumeration value="Env" />
<enumeration value="Transport" />
<enumeration value="Infra" />
<enumeration value="CBRNE" />
<enumeration value="Other" />
</restriction>
</simpleType>
</element>
<element name="event" type="string" />
<element name="responseType" minOccurs="0" maxOccurs="unbounded">
<simpleType>
<restriction base="string">
<enumeration value="Shelter" />
<enumeration value="Evacuate" />
<enumeration value="Prepare" />
<enumeration value="Execute" />
<enumeration value="Monitor" />
<enumeration value="Assess" />
<enumeration value="None" />
</restriction>
</simpleType>
</element>
<element name="urgency">
<simpleType>
<restriction base="string">
<enumeration value="Immediate" />
<enumeration value="Expected" />
<enumeration value="Future" />
<enumeration value="Past" />
<enumeration value="Unknown" />
</restriction>
</simpleType>
</element>
<element name="severity">
<simpleType>
<restriction base="string">
<enumeration value="Extreme" />
<enumeration value="Severe" />
<enumeration value="Moderate" />
<enumeration value="Minor" />
<enumeration value="Unknown" />
</restriction>
</simpleType>
</element>
<element name="certainty">
<simpleType>
<restriction base="string">
<enumeration value="Observed" />
<enumeration value="Likely" />
<enumeration value="Possible" />
<enumeration value="Unlikely" />
<enumeration value="Unknown" />
</restriction>
</simpleType>
</element>
<element name="audience" type="string" minOccurs="0" />
<element name="eventCode" minOccurs="0" maxOccurs="unbounded">
<complexType>
<sequence>
<element ref="cap:valueName" />
<element ref="cap:value" />
</sequence>
</complexType>
</element>
<element name="effective" type="dateTime" form="qualified" minOccurs="0" />
<element name="onset" type="dateTime" minOccurs="0" />
<element name="expires" type="dateTime" minOccurs="0" />
<element name="senderName" type="string" minOccurs="0" />
<element name="headline" type="string" minOccurs="0" />
<element name="description" type="string" minOccurs="0" />
<element name="instruction" type="string" minOccurs="0" />
<element name="web" type="anyURI" minOccurs="0" />
<element name="contact" type="string" minOccurs="0" />
<element name="parameter" minOccurs="0" maxOccurs="unbounded">
<complexType>
<sequence>
<element ref="cap:valueName" />
<element ref="cap:value" />
</sequence>
</complexType>
</element>
<element name="resource" minOccurs="0" maxOccurs="unbounded">
<complexType>
<sequence>
<element name="resourceDesc" type="string" />
<element name="mimeType" type="string" minOccurs="0" />
<element name="size" type="integer" minOccurs="0" />
<element name="uri" type="anyURI" minOccurs="0" />
<element name="derefUri" type="string" minOccurs="0" />
<element name="digest" type="string" minOccurs="0" />
</sequence>
</complexType>
</element>
<element name="area" minOccurs="0" maxOccurs="unbounded">
<complexType>
<sequence>
<element name="areaDesc" type="string" />
<element name="polygon" type="string" minOccurs="0" maxOccurs="unbounded" />
<element name="circle" type="string" minOccurs="0" maxOccurs="unbounded" />
<element name="geocode" minOccurs="0" maxOccurs="unbounded">
<complexType>
<sequence>
<element ref="cap:valueName" />
<element ref="cap:value" />
</sequence>
</complexType>
</element>
<element name="altitude" type="string" minOccurs="0" />
<element name="ceiling" type="string" minOccurs="0" />
</sequence>
</complexType>
</element>
</sequence>
</complexType>
</element>
</sequence>
</complexType>
</element>
|

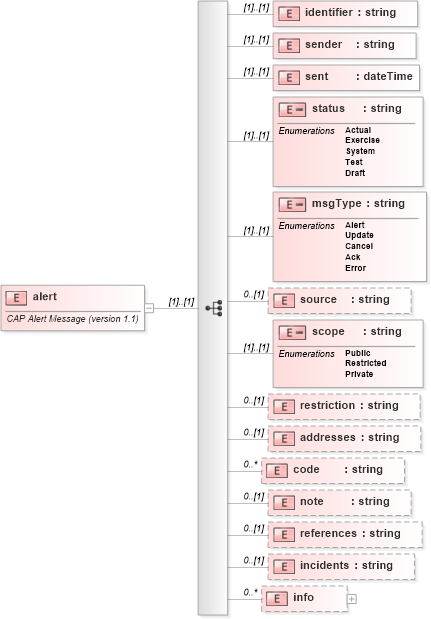

XSD Schema Diagram:
