Documentation for National Information Exchange Model (NEIM)
Definition Type: Element
Name: info
Namespace: urn:oasis:names:tc:emergency:cap:1.1
Containing Schema: cap.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Collapse XSD Schema Diagram:

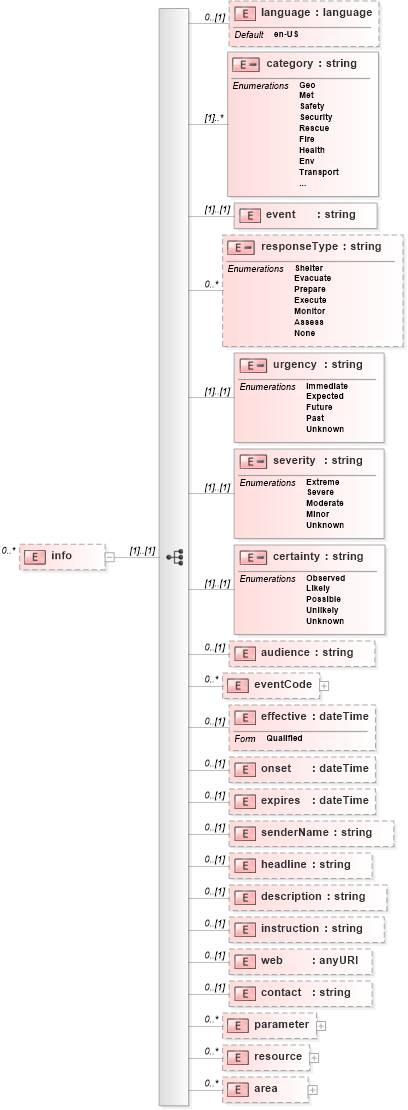

Drilldown into area in schema cap_xsd Drilldown into resource in schema cap_xsd Drilldown into parameter in schema cap_xsd Drilldown into contact in schema cap_xsd Drilldown into web in schema cap_xsd Drilldown into instruction in schema cap_xsd Drilldown into description in schema cap_xsd Drilldown into headline in schema cap_xsd Drilldown into senderName in schema cap_xsd Drilldown into expires in schema cap_xsd Drilldown into onset in schema cap_xsd Drilldown into effective in schema cap_xsd Drilldown into eventCode in schema cap_xsd Drilldown into audience in schema cap_xsd Drilldown into certainty in schema cap_xsd Drilldown into severity in schema cap_xsd Drilldown into urgency in schema cap_xsd Drilldown into responseType in schema cap_xsd Drilldown into event in schema cap_xsd Drilldown into category in schema cap_xsd Drilldown into language in schema cap_xsdXSD Diagram of info in schema cap_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<element name="info" minOccurs="0" maxOccurs="unbounded">
    <complexType>
        <sequence>
            <element name="language" type="language" default="en-US" minOccurs="0" />
            <element name="category" maxOccurs="unbounded">
                <simpleType>
                    <restriction base="string">
                        <enumeration value="Geo" />
                        <enumeration value="Met" />
                        <enumeration value="Safety" />
                        <enumeration value="Security" />
                        <enumeration value="Rescue" />
                        <enumeration value="Fire" />
                        <enumeration value="Health" />
                        <enumeration value="Env" />
                        <enumeration value="Transport" />
                        <enumeration value="Infra" />
                        <enumeration value="CBRNE" />
                        <enumeration value="Other" />
                    </restriction>
                </simpleType>
            </element>
            <element name="event" type="string" />
            <element name="responseType" minOccurs="0" maxOccurs="unbounded">
                <simpleType>
                    <restriction base="string">
                        <enumeration value="Shelter" />
                        <enumeration value="Evacuate" />
                        <enumeration value="Prepare" />
                        <enumeration value="Execute" />
                        <enumeration value="Monitor" />
                        <enumeration value="Assess" />
                        <enumeration value="None" />
                    </restriction>
                </simpleType>
            </element>
            <element name="urgency">
                <simpleType>
                    <restriction base="string">
                        <enumeration value="Immediate" />
                        <enumeration value="Expected" />
                        <enumeration value="Future" />
                        <enumeration value="Past" />
                        <enumeration value="Unknown" />
                    </restriction>
                </simpleType>
            </element>
            <element name="severity">
                <simpleType>
                    <restriction base="string">
                        <enumeration value="Extreme" />
                        <enumeration value="Severe" />
                        <enumeration value="Moderate" />
                        <enumeration value="Minor" />
                        <enumeration value="Unknown" />
                    </restriction>
                </simpleType>
            </element>
            <element name="certainty">
                <simpleType>
                    <restriction base="string">
                        <enumeration value="Observed" />
                        <enumeration value="Likely" />
                        <enumeration value="Possible" />
                        <enumeration value="Unlikely" />
                        <enumeration value="Unknown" />
                    </restriction>
                </simpleType>
            </element>
            <element name="audience" type="string" minOccurs="0" />
            <element name="eventCode" minOccurs="0" maxOccurs="unbounded">
                <complexType>
                    <sequence>
                        <element ref="cap:valueName" />
                        <element ref="cap:value" />
                    </sequence>
                </complexType>
            </element>
            <element name="effective" type="dateTime" form="qualified" minOccurs="0" />
            <element name="onset" type="dateTime" minOccurs="0" />
            <element name="expires" type="dateTime" minOccurs="0" />
            <element name="senderName" type="string" minOccurs="0" />
            <element name="headline" type="string" minOccurs="0" />
            <element name="description" type="string" minOccurs="0" />
            <element name="instruction" type="string" minOccurs="0" />
            <element name="web" type="anyURI" minOccurs="0" />
            <element name="contact" type="string" minOccurs="0" />
            <element name="parameter" minOccurs="0" maxOccurs="unbounded">
                <complexType>
                    <sequence>
                        <element ref="cap:valueName" />
                        <element ref="cap:value" />
                    </sequence>
                </complexType>
            </element>
            <element name="resource" minOccurs="0" maxOccurs="unbounded">
                <complexType>
                    <sequence>
                        <element name="resourceDesc" type="string" />
                        <element name="mimeType" type="string" minOccurs="0" />
                        <element name="size" type="integer" minOccurs="0" />
                        <element name="uri" type="anyURI" minOccurs="0" />
                        <element name="derefUri" type="string" minOccurs="0" />
                        <element name="digest" type="string" minOccurs="0" />
                    </sequence>
                </complexType>
            </element>
            <element name="area" minOccurs="0" maxOccurs="unbounded">
                <complexType>
                    <sequence>
                        <element name="areaDesc" type="string" />
                        <element name="polygon" type="string" minOccurs="0" maxOccurs="unbounded" />
                        <element name="circle" type="string" minOccurs="0" maxOccurs="unbounded" />
                        <element name="geocode" minOccurs="0" maxOccurs="unbounded">
                            <complexType>
                                <sequence>
                                    <element ref="cap:valueName" />
                                    <element ref="cap:value" />
                                </sequence>
                            </complexType>
                        </element>
                        <element name="altitude" type="string" minOccurs="0" />
                        <element name="ceiling" type="string" minOccurs="0" />
                    </sequence>
                </complexType>
            </element>
        </sequence>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
language cap:language 0 (1)
category cap:category (1) unbounded
event cap:event (1) (1)
responseType cap:responseType 0 unbounded
urgency cap:urgency (1) (1)
severity cap:severity (1) (1)
certainty cap:certainty (1) (1)
audience cap:audience 0 (1)
eventCode cap:eventCode 0 unbounded
effective cap:effective 0 (1)
onset cap:onset 0 (1)
expires cap:expires 0 (1)
senderName cap:senderName 0 (1)
headline cap:headline 0 (1)
description cap:description 0 (1)
instruction cap:instruction 0 (1)
web cap:web 0 (1)
contact cap:contact 0 (1)
parameter cap:parameter 0 unbounded
resource cap:resource 0 unbounded
area cap:area 0 unbounded
