Documentation for National Information Exchange Model (NEIM)
Definition Type: Element
Name: CrossSectSurf
Namespace: http://www.landxml.org/schema/LandXML-1.1
Containing Schema: LandXML-1.1.xsd
Abstract
Documentation:
Defined as a space delimited PntList2D of offset-distance/offset-elevations from the centerline, also known as the profile grade line. Typically represent existing ground surfaces. Example: "-60.00 1.52 -36.26 0.89 12.41 2.01 60.00 1.83" Note: Gaps in the surface are handled by having 2 or more PntList2D elements.

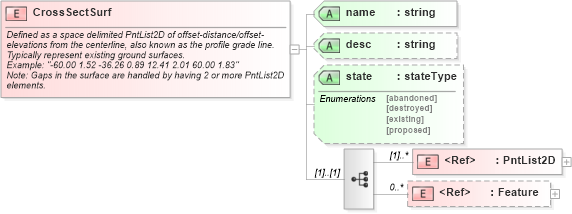

Collapse XSD Schema Diagram:
Drilldown into Feature in schema landxml-1_1_xsd Drilldown into PntList2D in schema landxml-1_1_xsd Drilldown into state in schema landxml-1_1_xsd Drilldown into desc in schema landxml-1_1_xsd Drilldown into name in schema landxml-1_1_xsdXSD Diagram of CrossSectSurf in schema landxml-1_1_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="CrossSectSurf">
    <xs:annotation>
        <xs:documentation>Defined as a space delimited PntList2D of offset-distance/offset-elevations from the centerline, also known as the profile grade line. Typically represent existing ground surfaces.</xs:documentation>
        <xs:documentation>Example: "-60.00 1.52 -36.26 0.89 12.41 2.01 60.00 1.83"</xs:documentation>
        <xs:documentation>Note: Gaps in the surface are handled by having 2 or more PntList2D elements.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="PntList2D" maxOccurs="unbounded" />
            <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="name" type="xs:string" use="required" />
        <xs:attribute name="desc" type="xs:string" />
        <xs:attribute name="state" type="stateType" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PntList2D land:PntList2D (1) unbounded
Feature land:Feature 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
name land:name Required
desc land:desc (Optional)
state land:state (Optional)
