Documentation for National Information Exchange Model (NEIM)
Definition Type: Element
Name: Equipment
Namespace: http://www.landxml.org/schema/LandXML-1.1
Containing Schema: LandXML-1.1.xsd
Abstract
Collapse XSD Schema Diagram:

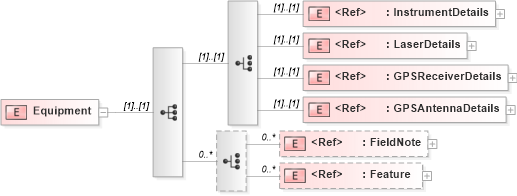

Drilldown into Feature in schema landxml-1_1_xsd Drilldown into FieldNote in schema landxml-1_1_xsd Drilldown into GPSAntennaDetails in schema landxml-1_1_xsd Drilldown into GPSReceiverDetails in schema landxml-1_1_xsd Drilldown into LaserDetails in schema landxml-1_1_xsd Drilldown into InstrumentDetails in schema landxml-1_1_xsdXSD Diagram of Equipment in schema landxml-1_1_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="Equipment">
    <xs:annotation>
        <xs:documentation />
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:choice>
                <xs:element ref="InstrumentDetails" />
                <xs:element ref="LaserDetails" />
                <xs:element ref="GPSReceiverDetails" />
                <xs:element ref="GPSAntennaDetails" />
            </xs:choice>
            <xs:choice minOccurs="0" maxOccurs="unbounded">
                <xs:element ref="FieldNote" minOccurs="0" maxOccurs="unbounded" />
                <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded" />
            </xs:choice>
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
InstrumentDetails land:InstrumentDetails (1) (1)
LaserDetails land:LaserDetails (1) (1)
GPSReceiverDetails land:GPSReceiverDetails (1) (1)
GPSAntennaDetails land:GPSAntennaDetails (1) (1)
FieldNote land:FieldNote 0 unbounded
Feature land:Feature 0 unbounded
