Definition Type: Element
Name: IfcFillAreaStyleTiles
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcFillAreaStyleTiles
Containing Schema: IFC2X2_FINAL.xsd
Abstract
Collapse XSD Schema Diagram:

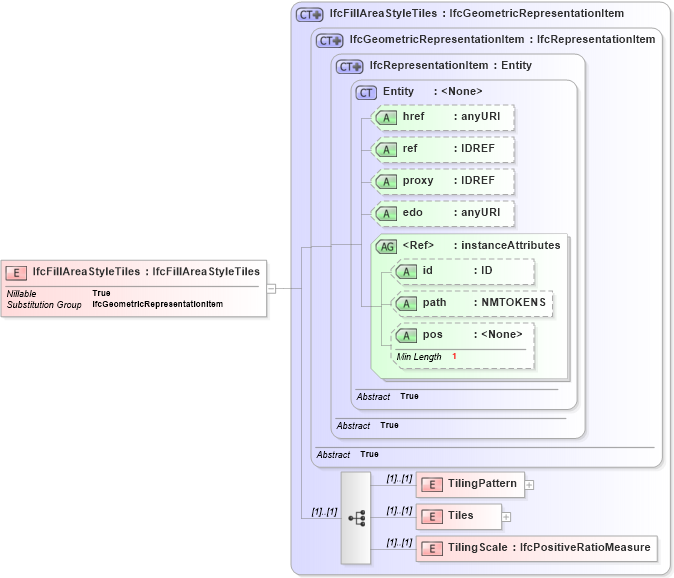

Drilldown into TilingScale in schema ifc2x2_final_xsd Drilldown into Tiles in schema ifc2x2_final_xsd Drilldown into TilingPattern in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcRepresentationItem in schema ifc2x2_final_xsd Drilldown into IfcGeometricRepresentationItem in schema ifc2x2_final_xsd Drilldown into IfcFillAreaStyleTiles in schema ifc2x2_final_xsdXSD Diagram of IfcFillAreaStyleTiles in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="IfcFillAreaStyleTiles" type="ifc:IfcFillAreaStyleTiles" substitutionGroup="ifc:IfcGeometricRepresentationItem" nillable="true" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TilingPattern ifc:TilingPattern (1) (1)
Tiles ifc:Tiles (1) (1)
TilingScale ifc:TilingScale (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcGeometricRepresentationItem
