Definition Type: ComplexType
Name: IfcGeometricRepresentationItem
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcRepresentationItem
Containing Schema: IFC2X2_FINAL.xsd
Abstract True
Collapse XSD Schema Diagram:

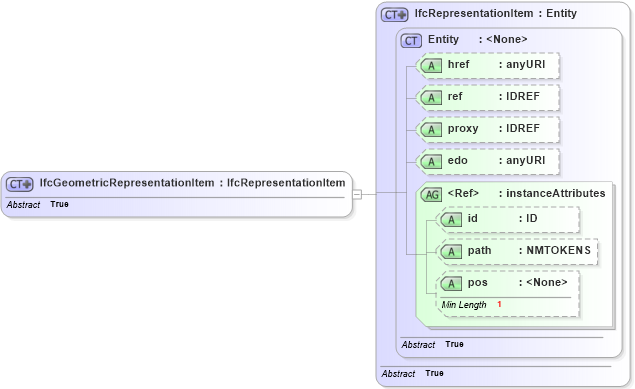

Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcRepresentationItem in schema ifc2x2_final_xsdXSD Diagram of IfcGeometricRepresentationItem in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcGeometricRepresentationItem" abstract="true">
    <xs:complexContent>
        <xs:extension base="ifc:IfcRepresentationItem" />
    </xs:complexContent>
</xs:complexType>
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcAnnotationFillArea, ifc:IfcBooleanResult, ifc:IfcBoundingBox, ifc:IfcCartesianTransformationOperator, ifc:IfcCompositeCurveSegment, ifc:IfcCurve, ifc:IfcDefinedSymbol, ifc:IfcDirection, ifc:IfcDraughtingCallout, ifc:IfcFaceBasedSurfaceModel, ifc:IfcFillAreaStyleHatching, ifc:IfcFillAreaStyleTiles, ifc:IfcFillAreaStyleTileSymbolWithStyle, ifc:IfcGeometricRepresentationItemifc:IfcGeometricSet, ifc:IfcHalfSpaceSolid, ifc:IfcLightSource, ifc:IfcOneDirectionRepeatFactor, ifc:IfcPlacement, ifc:IfcPlanarExtent, ifc:IfcPoint, ifc:IfcSectionedSpine, ifc:IfcShellBasedSurfaceModel, ifc:IfcSolidModel, ifc:IfcSurface, ifc:IfcTextLiteral, ifc:IfcVector,
