Definition Type: ComplexType
Name: IfcBSplineCurve
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcBoundedCurve
Containing Schema: IFC2X2_FINAL.xsd
Abstract True
Collapse XSD Schema Diagram:

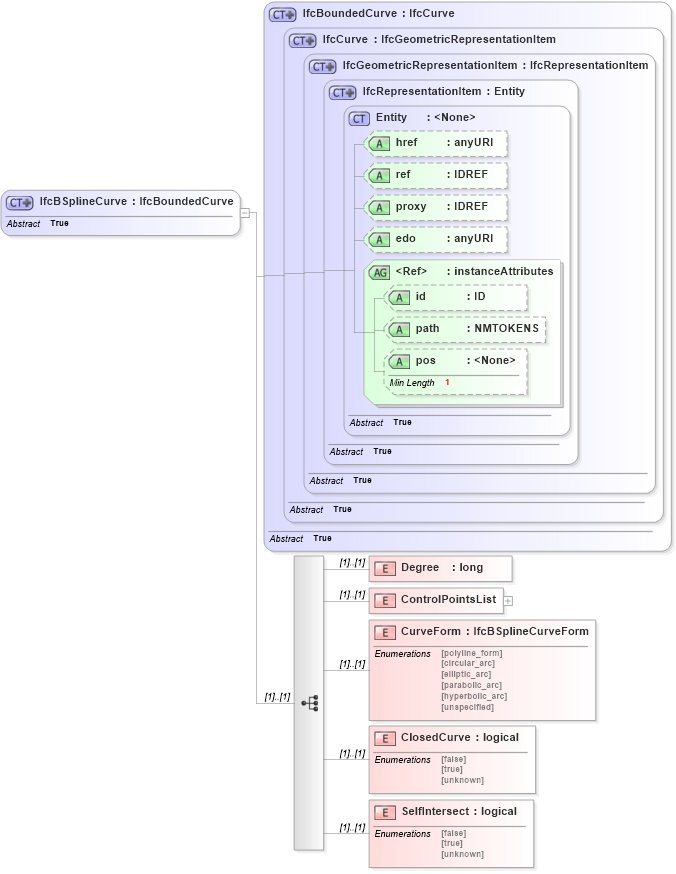

Drilldown into SelfIntersect in schema ifc2x2_final_xsd Drilldown into ClosedCurve in schema ifc2x2_final_xsd Drilldown into CurveForm in schema ifc2x2_final_xsd Drilldown into ControlPointsList in schema ifc2x2_final_xsd Drilldown into Degree in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcRepresentationItem in schema ifc2x2_final_xsd Drilldown into IfcGeometricRepresentationItem in schema ifc2x2_final_xsd Drilldown into IfcCurve in schema ifc2x2_final_xsd Drilldown into IfcBoundedCurve in schema ifc2x2_final_xsdXSD Diagram of IfcBSplineCurve in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcBSplineCurve" abstract="true">
    <xs:complexContent>
        <xs:extension base="ifc:IfcBoundedCurve">
            <xs:sequence>
                <xs:element name="Degree" type="xs:long" />
                <xs:element name="ControlPointsList">
                    <xs:complexType>
                        <xs:sequence>
                            <xs:element ref="ifc:IfcCartesianPoint" minOccurs="2" maxOccurs="unbounded" />
                        </xs:sequence>
                        <xs:attribute ref="ex:itemType" fixed="ifc:IfcCartesianPoint" />
                        <xs:attribute ref="ex:cType" fixed="list" />
                        <xs:attribute ref="ex:arraySize" use="optional" />
                    </xs:complexType>
                </xs:element>
                <xs:element name="CurveForm" type="ifc:IfcBSplineCurveForm" />
                <xs:element name="ClosedCurve" type="ex:logical" />
                <xs:element name="SelfIntersect" type="ex:logical" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Degree ifc:Degree (1) (1)
ControlPointsList ifc:ControlPointsList (1) (1)
CurveForm ifc:CurveForm (1) (1)
ClosedCurve ifc:ClosedCurve (1) (1)
SelfIntersect ifc:SelfIntersect (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
