Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: IfcBoundedCurve
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcCurve
Containing Schema: IFC2X2_FINAL.xsd
Abstract True

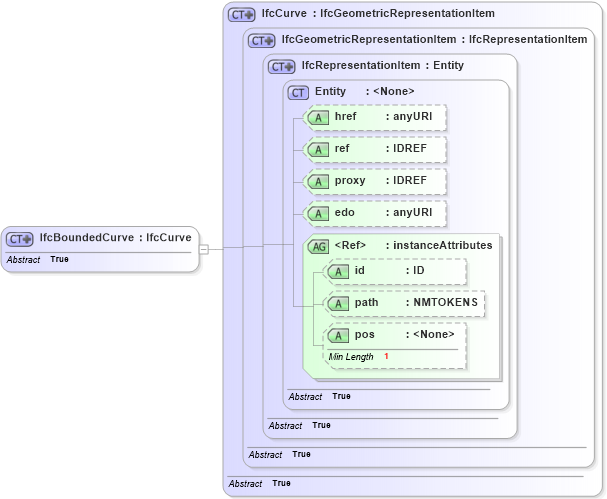

Collapse XSD Schema Diagram:
Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcRepresentationItem in schema ifc2x2_final_xsd Drilldown into IfcGeometricRepresentationItem in schema ifc2x2_final_xsd Drilldown into IfcCurve in schema ifc2x2_final_xsdXSD Diagram of IfcBoundedCurve in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcBoundedCurve" abstract="true">
    <xs:complexContent>
        <xs:extension base="ifc:IfcCurve" />
    </xs:complexContent>
</xs:complexType>
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcBoundedCurveifc:IfcBSplineCurve, ifc:IfcCompositeCurve, ifc:IfcPolyline, ifc:IfcTrimmedCurve,
