Definition Type: Element
Name: Ifc2DCompositeCurve
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:Ifc2DCompositeCurve
Containing Schema: IFC2X2_FINAL.xsd
Abstract

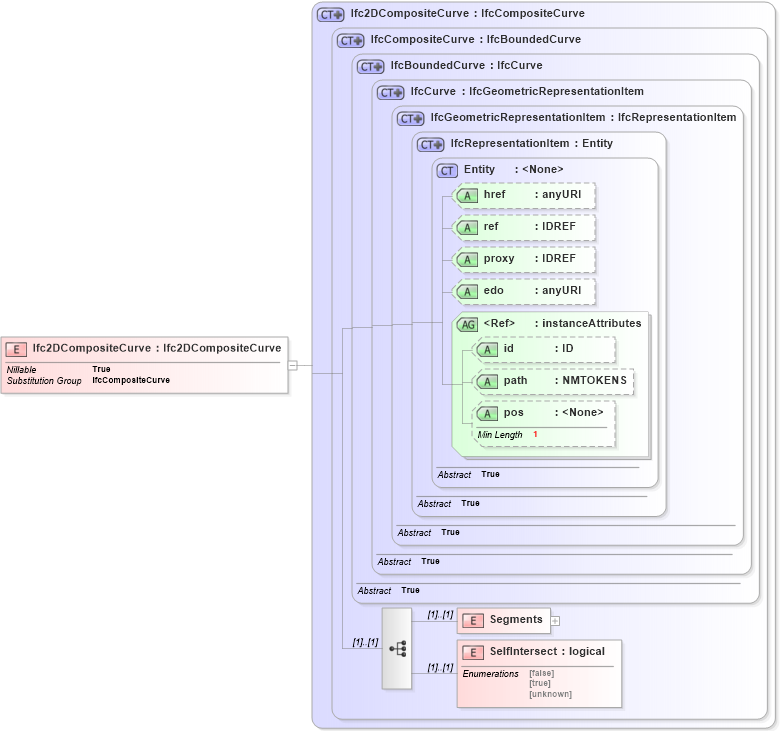

Collapse XSD Schema Diagram:
Drilldown into SelfIntersect in schema ifc2x2_final_xsd Drilldown into Segments in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcRepresentationItem in schema ifc2x2_final_xsd Drilldown into IfcGeometricRepresentationItem in schema ifc2x2_final_xsd Drilldown into IfcCurve in schema ifc2x2_final_xsd Drilldown into IfcBoundedCurve in schema ifc2x2_final_xsd Drilldown into IfcCompositeCurve in schema ifc2x2_final_xsd Drilldown into Ifc2DCompositeCurve in schema ifc2x2_final_xsdXSD Diagram of Ifc2DCompositeCurve in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="Ifc2DCompositeCurve" type="ifc:Ifc2DCompositeCurve" substitutionGroup="ifc:IfcCompositeCurve" nillable="true" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Segments ifc:Segments (1) (1)
SelfIntersect ifc:SelfIntersect (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcCompositeCurve
