Definition Type: Element
Name: IfcPointOnSurface
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcPointOnSurface
Containing Schema: IFC2X2_FINAL.xsd
Abstract

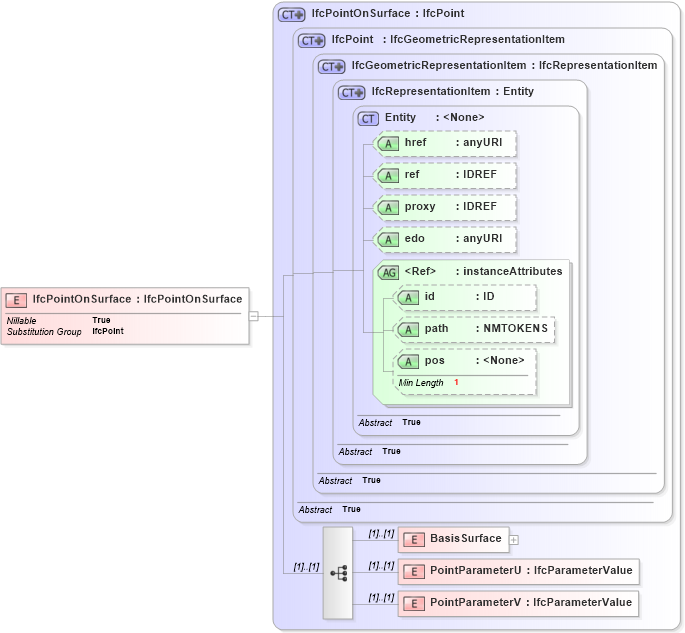

Collapse XSD Schema Diagram:
Drilldown into PointParameterV in schema ifc2x2_final_xsd Drilldown into PointParameterU in schema ifc2x2_final_xsd Drilldown into BasisSurface in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcRepresentationItem in schema ifc2x2_final_xsd Drilldown into IfcGeometricRepresentationItem in schema ifc2x2_final_xsd Drilldown into IfcPoint in schema ifc2x2_final_xsd Drilldown into IfcPointOnSurface in schema ifc2x2_final_xsdXSD Diagram of IfcPointOnSurface in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="IfcPointOnSurface" type="ifc:IfcPointOnSurface" substitutionGroup="ifc:IfcPoint" nillable="true" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BasisSurface ifc:BasisSurface (1) (1)
PointParameterU ifc:PointParameterU (1) (1)
PointParameterV ifc:PointParameterV (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcPoint
