Definition Type: ComplexType
Name: IfcRectangularTrimmedSurface
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcBoundedSurface
Containing Schema: IFC2X2_FINAL.xsd
Abstract

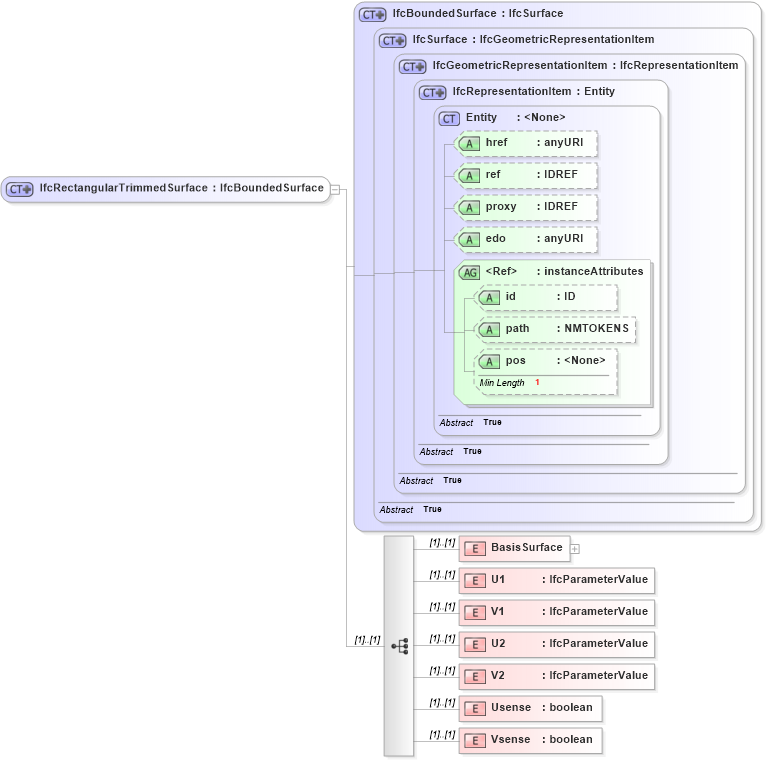

Collapse XSD Schema Diagram:
Drilldown into Vsense in schema ifc2x2_final_xsd Drilldown into Usense in schema ifc2x2_final_xsd Drilldown into V2 in schema ifc2x2_final_xsd Drilldown into U2 in schema ifc2x2_final_xsd Drilldown into V1 in schema ifc2x2_final_xsd Drilldown into U1 in schema ifc2x2_final_xsd Drilldown into BasisSurface in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcRepresentationItem in schema ifc2x2_final_xsd Drilldown into IfcGeometricRepresentationItem in schema ifc2x2_final_xsd Drilldown into IfcSurface in schema ifc2x2_final_xsd Drilldown into IfcBoundedSurface in schema ifc2x2_final_xsdXSD Diagram of IfcRectangularTrimmedSurface in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcRectangularTrimmedSurface">
    <xs:complexContent>
        <xs:extension base="ifc:IfcBoundedSurface">
            <xs:sequence>
                <xs:element name="BasisSurface">
                    <xs:complexType>
                        <xs:choice>
                            <xs:element ref="ifc:IfcSurface" />
                        </xs:choice>
                    </xs:complexType>
                </xs:element>
                <xs:element name="U1" type="ifc:IfcParameterValue" />
                <xs:element name="V1" type="ifc:IfcParameterValue" />
                <xs:element name="U2" type="ifc:IfcParameterValue" />
                <xs:element name="V2" type="ifc:IfcParameterValue" />
                <xs:element name="Usense" type="xs:boolean" />
                <xs:element name="Vsense" type="xs:boolean" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BasisSurface ifc:BasisSurface (1) (1)
U1 ifc:U1 (1) (1)
V1 ifc:V1 (1) (1)
U2 ifc:U2 (1) (1)
V2 ifc:V2 (1) (1)
Usense ifc:Usense (1) (1)
Vsense ifc:Vsense (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcRectangularTrimmedSurface
