Definition Type: ComplexType
Name: IfcLightSourceGoniometric
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcLightSource
Containing Schema: IFC2X2_FINAL.xsd
Abstract

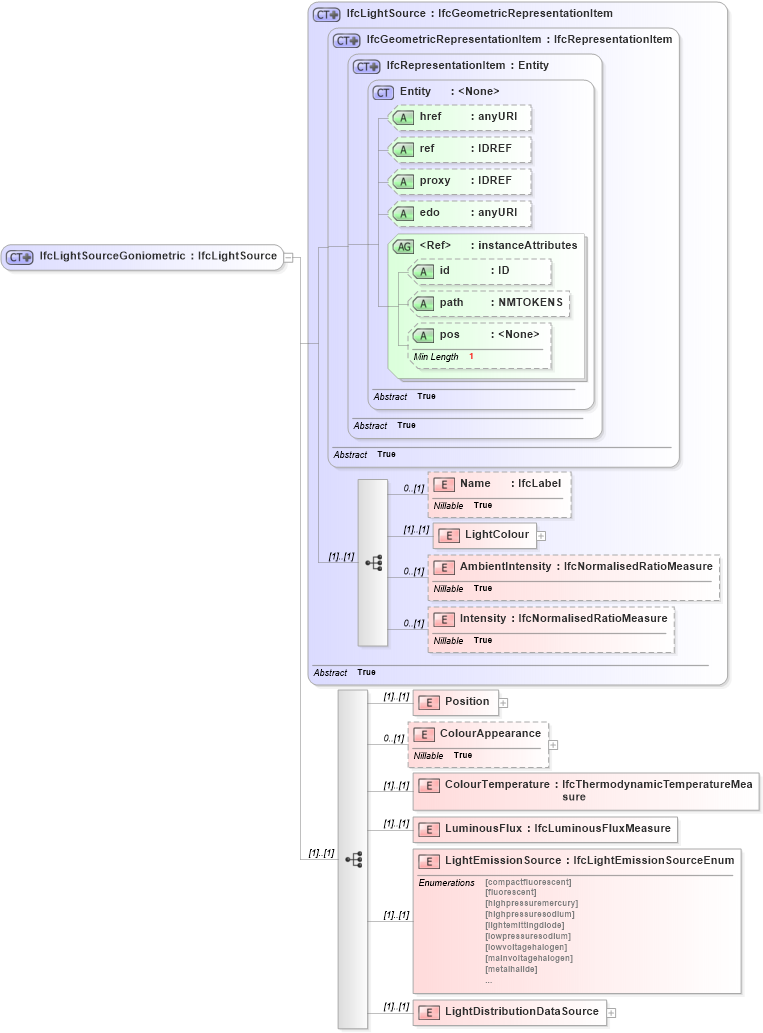

Collapse XSD Schema Diagram:
Drilldown into LightDistributionDataSource in schema ifc2x2_final_xsd Drilldown into LightEmissionSource in schema ifc2x2_final_xsd Drilldown into LuminousFlux in schema ifc2x2_final_xsd Drilldown into ColourTemperature in schema ifc2x2_final_xsd Drilldown into ColourAppearance in schema ifc2x2_final_xsd Drilldown into Position in schema ifc2x2_final_xsd Drilldown into Intensity in schema ifc2x2_final_xsd Drilldown into AmbientIntensity in schema ifc2x2_final_xsd Drilldown into LightColour in schema ifc2x2_final_xsd Drilldown into Name in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcRepresentationItem in schema ifc2x2_final_xsd Drilldown into IfcGeometricRepresentationItem in schema ifc2x2_final_xsd Drilldown into IfcLightSource in schema ifc2x2_final_xsdXSD Diagram of IfcLightSourceGoniometric in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcLightSourceGoniometric">
    <xs:complexContent>
        <xs:extension base="ifc:IfcLightSource">
            <xs:sequence>
                <xs:element name="Position">
                    <xs:complexType>
                        <xs:choice>
                            <xs:element ref="ifc:IfcAxis2Placement3D" />
                        </xs:choice>
                    </xs:complexType>
                </xs:element>
                <xs:element name="ColourAppearance" nillable="true" minOccurs="0">
                    <xs:complexType>
                        <xs:choice>
                            <xs:element ref="ifc:IfcColourRgb" />
                        </xs:choice>
                    </xs:complexType>
                </xs:element>
                <xs:element name="ColourTemperature" type="ifc:IfcThermodynamicTemperatureMeasure" />
                <xs:element name="LuminousFlux" type="ifc:IfcLuminousFluxMeasure" />
                <xs:element name="LightEmissionSource" type="ifc:IfcLightEmissionSourceEnum" />
                <xs:element name="LightDistributionDataSource">
                    <xs:complexType>
                        <xs:group ref="ifc:IfcLightDistributionDataSourceSelect" />
                    </xs:complexType>
                </xs:element>
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name ifc:Name 0 (1)
LightColour ifc:LightColour (1) (1)
AmbientIntensity ifc:AmbientIntensity 0 (1)
Intensity ifc:Intensity 0 (1)
Position ifc:Position (1) (1)
ColourAppearance ifc:ColourAppearance 0 (1)
ColourTemperature ifc:ColourTemperature (1) (1)
LuminousFlux ifc:LuminousFlux (1) (1)
LightEmissionSource ifc:LightEmissionSource (1) (1)
LightDistributionDataSource ifc:LightDistributionDataSource (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcLightSourceGoniometric
