Definition Type: ComplexType
Name: IfcFillStyleSelect
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Containing Schema: IFC2X2_FINAL.xsd
Abstract
Collapse XSD Schema Diagram:

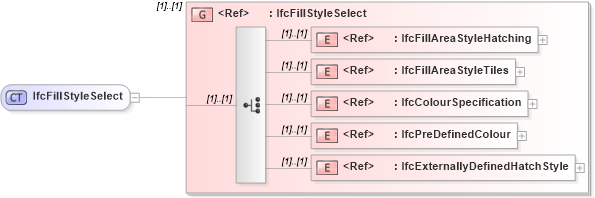

Drilldown into IfcExternallyDefinedHatchStyle in schema ifc2x2_final_xsd Drilldown into IfcPreDefinedColour in schema ifc2x2_final_xsd Drilldown into IfcColourSpecification in schema ifc2x2_final_xsd Drilldown into IfcFillAreaStyleTiles in schema ifc2x2_final_xsd Drilldown into IfcFillAreaStyleHatching in schema ifc2x2_final_xsd Drilldown into IfcFillStyleSelect in schema ifc2x2_final_xsdXSD Diagram of IfcFillStyleSelect in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcFillStyleSelect">
    <xs:group ref="ifc:IfcFillStyleSelect" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IfcFillAreaStyleHatching ifc:IfcFillAreaStyleHatching (1) (1)
IfcFillAreaStyleTiles ifc:IfcFillAreaStyleTiles (1) (1)
IfcColourSpecification ifc:IfcColourSpecification (1) (1)
IfcPreDefinedColour ifc:IfcPreDefinedColour (1) (1)
IfcExternallyDefinedHatchStyle ifc:IfcExternallyDefinedHatchStyle (1) (1)
