Definition Type: Group
Name: IfcFillStyleSelect
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Containing Schema: IFC2X2_FINAL.xsd
Collapse XSD Schema Diagram:

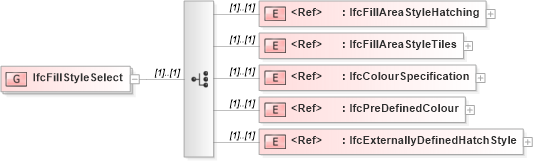

Drilldown into IfcExternallyDefinedHatchStyle in schema ifc2x2_final_xsd Drilldown into IfcPreDefinedColour in schema ifc2x2_final_xsd Drilldown into IfcColourSpecification in schema ifc2x2_final_xsd Drilldown into IfcFillAreaStyleTiles in schema ifc2x2_final_xsd Drilldown into IfcFillAreaStyleHatching in schema ifc2x2_final_xsdXSD Diagram of IfcFillStyleSelect in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:group name="IfcFillStyleSelect">
    <xs:choice>
        <xs:element ref="ifc:IfcFillAreaStyleHatching" />
        <xs:element ref="ifc:IfcFillAreaStyleTiles" />
        <xs:element ref="ifc:IfcColourSpecification" />
        <xs:element ref="ifc:IfcPreDefinedColour" />
        <xs:element ref="ifc:IfcExternallyDefinedHatchStyle" />
    </xs:choice>
</xs:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IfcFillAreaStyleHatching ifc:IfcFillAreaStyleHatching (1) (1)
IfcFillAreaStyleTiles ifc:IfcFillAreaStyleTiles (1) (1)
IfcColourSpecification ifc:IfcColourSpecification (1) (1)
IfcPreDefinedColour ifc:IfcPreDefinedColour (1) (1)
IfcExternallyDefinedHatchStyle ifc:IfcExternallyDefinedHatchStyle (1) (1)
