Documentation for National Information Exchange Model (NEIM)
Definition Type: Element
Name: IfcMechanicalMaterialProperties
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcMechanicalMaterialProperties
Containing Schema: IFC2X2_FINAL.xsd
Abstract

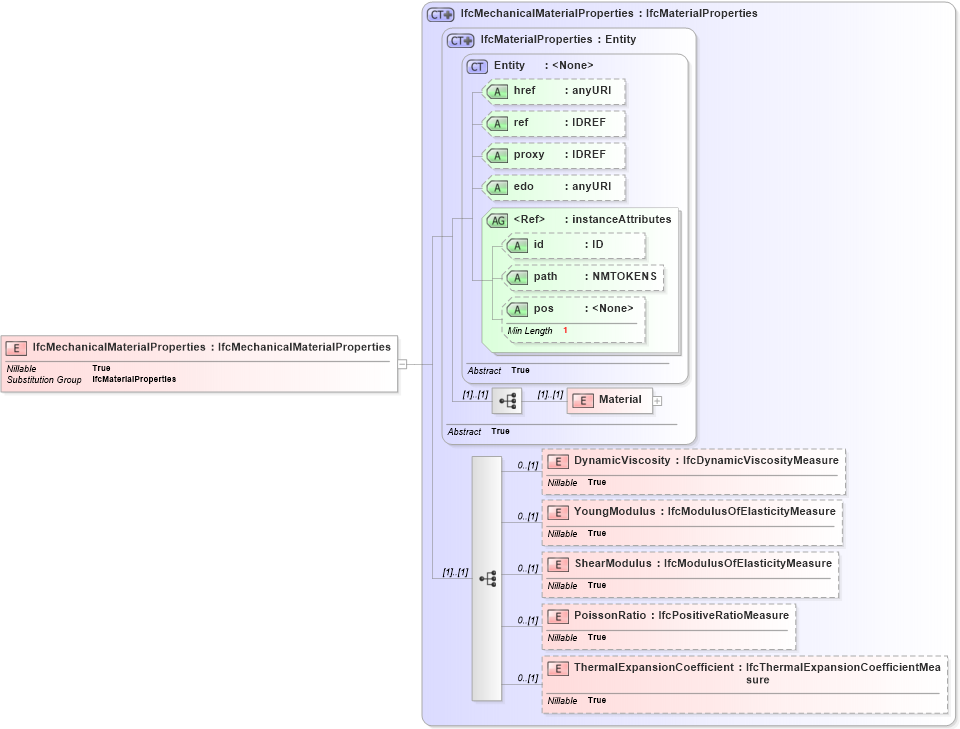

Collapse XSD Schema Diagram:
Drilldown into ThermalExpansionCoefficient in schema ifc2x2_final_xsd Drilldown into PoissonRatio in schema ifc2x2_final_xsd Drilldown into ShearModulus in schema ifc2x2_final_xsd Drilldown into YoungModulus in schema ifc2x2_final_xsd Drilldown into DynamicViscosity in schema ifc2x2_final_xsd Drilldown into Material in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcMaterialProperties in schema ifc2x2_final_xsd Drilldown into IfcMechanicalMaterialProperties in schema ifc2x2_final_xsdXSD Diagram of IfcMechanicalMaterialProperties in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="IfcMechanicalMaterialProperties" type="ifc:IfcMechanicalMaterialProperties" substitutionGroup="ifc:IfcMaterialProperties" nillable="true" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Material ifc:Material (1) (1)
DynamicViscosity ifc:DynamicViscosity 0 (1)
YoungModulus ifc:YoungModulus 0 (1)
ShearModulus ifc:ShearModulus 0 (1)
PoissonRatio ifc:PoissonRatio 0 (1)
ThermalExpansionCoefficient ifc:ThermalExpansionCoefficient 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcMaterialProperties
