Definition Type: ComplexType
Name: IfcMechanicalMaterialProperties
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcMaterialProperties
Containing Schema: IFC2X2_FINAL.xsd
Abstract

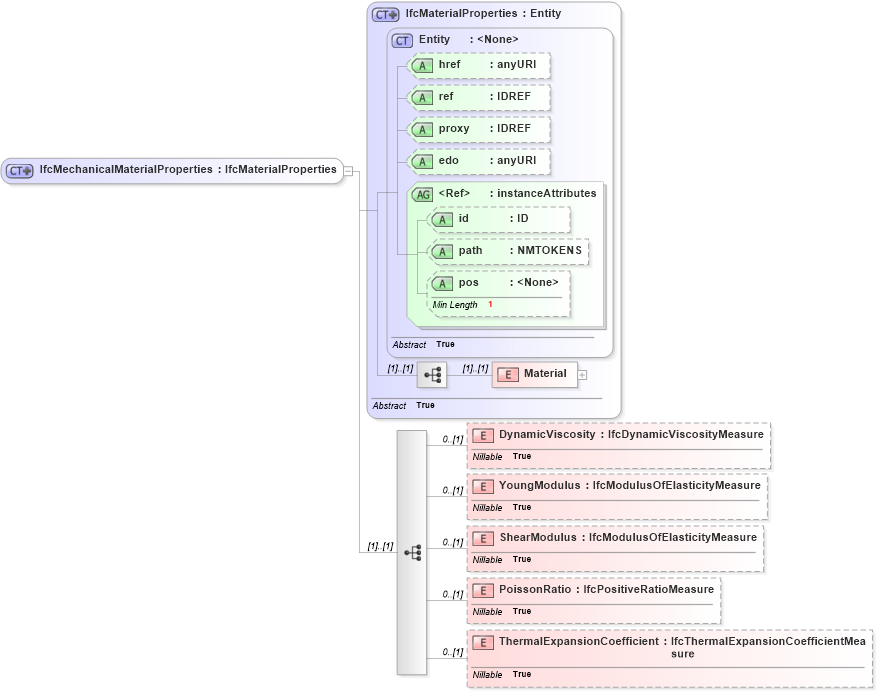

Collapse XSD Schema Diagram:
Drilldown into ThermalExpansionCoefficient in schema ifc2x2_final_xsd Drilldown into PoissonRatio in schema ifc2x2_final_xsd Drilldown into ShearModulus in schema ifc2x2_final_xsd Drilldown into YoungModulus in schema ifc2x2_final_xsd Drilldown into DynamicViscosity in schema ifc2x2_final_xsd Drilldown into Material in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcMaterialProperties in schema ifc2x2_final_xsdXSD Diagram of IfcMechanicalMaterialProperties in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcMechanicalMaterialProperties">
    <xs:complexContent>
        <xs:extension base="ifc:IfcMaterialProperties">
            <xs:sequence>
                <xs:element name="DynamicViscosity" type="ifc:IfcDynamicViscosityMeasure" nillable="true" minOccurs="0" />
                <xs:element name="YoungModulus" type="ifc:IfcModulusOfElasticityMeasure" nillable="true" minOccurs="0" />
                <xs:element name="ShearModulus" type="ifc:IfcModulusOfElasticityMeasure" nillable="true" minOccurs="0" />
                <xs:element name="PoissonRatio" type="ifc:IfcPositiveRatioMeasure" nillable="true" minOccurs="0" />
                <xs:element name="ThermalExpansionCoefficient" type="ifc:IfcThermalExpansionCoefficientMeasure" nillable="true" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Material ifc:Material (1) (1)
DynamicViscosity ifc:DynamicViscosity 0 (1)
YoungModulus ifc:YoungModulus 0 (1)
ShearModulus ifc:ShearModulus 0 (1)
PoissonRatio ifc:PoissonRatio 0 (1)
ThermalExpansionCoefficient ifc:ThermalExpansionCoefficient 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcMechanicalConcreteMaterialProperties, ifc:IfcMechanicalMaterialPropertiesifc:IfcMechanicalSteelMaterialProperties,
