Definition Type: ComplexType
Name: IfcParameterizedProfileDef
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcProfileDef
Containing Schema: IFC2X2_FINAL.xsd
Abstract True

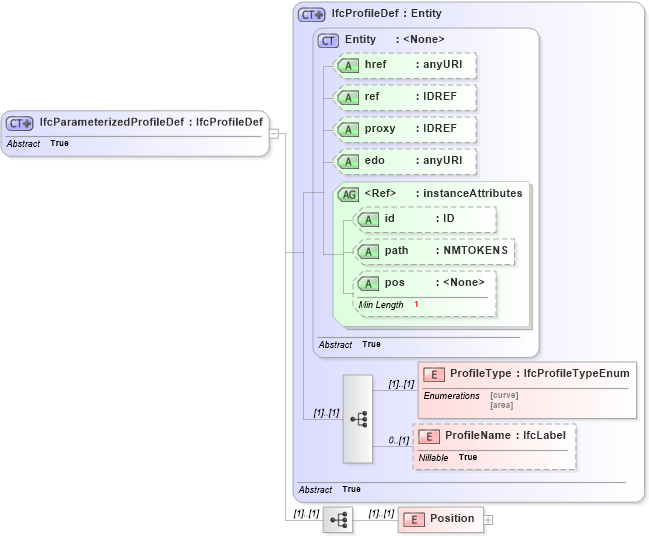

Collapse XSD Schema Diagram:
Drilldown into Position in schema ifc2x2_final_xsd Drilldown into ProfileName in schema ifc2x2_final_xsd Drilldown into ProfileType in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcProfileDef in schema ifc2x2_final_xsdXSD Diagram of IfcParameterizedProfileDef in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcParameterizedProfileDef" abstract="true">
    <xs:complexContent>
        <xs:extension base="ifc:IfcProfileDef">
            <xs:sequence>
                <xs:element name="Position">
                    <xs:complexType>
                        <xs:choice>
                            <xs:element ref="ifc:IfcAxis2Placement2D" />
                        </xs:choice>
                    </xs:complexType>
                </xs:element>
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ProfileType ifc:ProfileType (1) (1)
ProfileName ifc:ProfileName 0 (1)
Position ifc:Position (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcCircleProfileDef, ifc:IfcCraneRailAShapeProfileDef, ifc:IfcCraneRailFShapeProfileDef, ifc:IfcCShapeProfileDef, ifc:IfcEllipseProfileDef, ifc:IfcIShapeProfileDef, ifc:IfcLShapeProfileDef, ifc:IfcParameterizedProfileDefifc:IfcRectangleProfileDef, ifc:IfcTrapeziumProfileDef, ifc:IfcTShapeProfileDef, ifc:IfcUShapeProfileDef, ifc:IfcZShapeProfileDef,
