Definition Type: ComplexType
Name: IfcStructuralLoadSingleDisplacement
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcStructuralLoadStatic
Containing Schema: IFC2X2_FINAL.xsd
Abstract

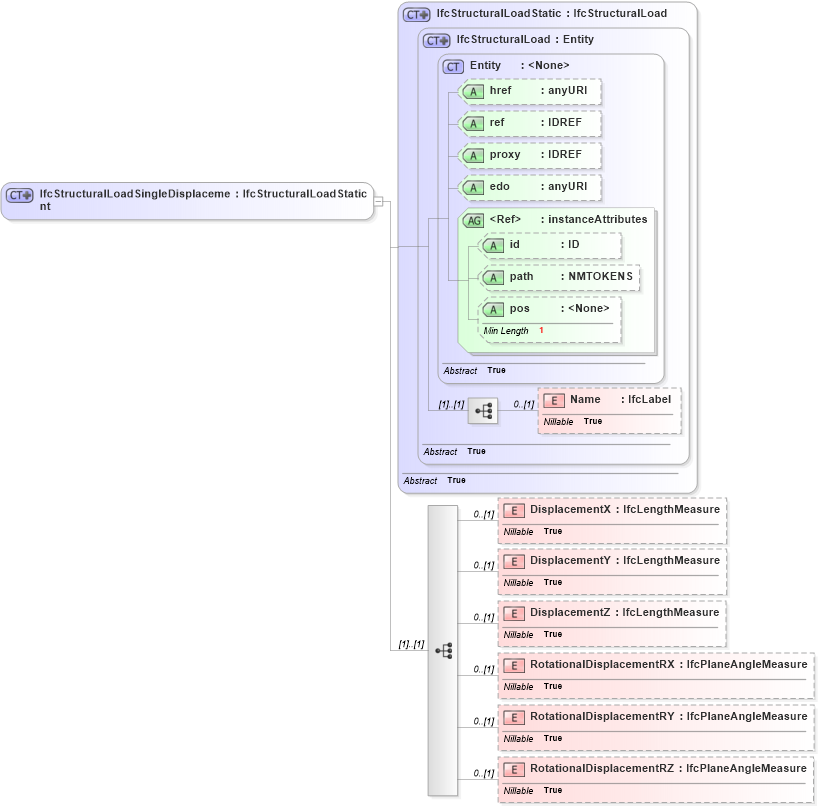

Collapse XSD Schema Diagram:
Drilldown into RotationalDisplacementRZ in schema ifc2x2_final_xsd Drilldown into RotationalDisplacementRY in schema ifc2x2_final_xsd Drilldown into RotationalDisplacementRX in schema ifc2x2_final_xsd Drilldown into DisplacementZ in schema ifc2x2_final_xsd Drilldown into DisplacementY in schema ifc2x2_final_xsd Drilldown into DisplacementX in schema ifc2x2_final_xsd Drilldown into Name in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcStructuralLoad in schema ifc2x2_final_xsd Drilldown into IfcStructuralLoadStatic in schema ifc2x2_final_xsdXSD Diagram of IfcStructuralLoadSingleDisplacement in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcStructuralLoadSingleDisplacement">
    <xs:complexContent>
        <xs:extension base="ifc:IfcStructuralLoadStatic">
            <xs:sequence>
                <xs:element name="DisplacementX" type="ifc:IfcLengthMeasure" nillable="true" minOccurs="0" />
                <xs:element name="DisplacementY" type="ifc:IfcLengthMeasure" nillable="true" minOccurs="0" />
                <xs:element name="DisplacementZ" type="ifc:IfcLengthMeasure" nillable="true" minOccurs="0" />
                <xs:element name="RotationalDisplacementRX" type="ifc:IfcPlaneAngleMeasure" nillable="true" minOccurs="0" />
                <xs:element name="RotationalDisplacementRY" type="ifc:IfcPlaneAngleMeasure" nillable="true" minOccurs="0" />
                <xs:element name="RotationalDisplacementRZ" type="ifc:IfcPlaneAngleMeasure" nillable="true" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name ifc:Name 0 (1)
DisplacementX ifc:DisplacementX 0 (1)
DisplacementY ifc:DisplacementY 0 (1)
DisplacementZ ifc:DisplacementZ 0 (1)
RotationalDisplacementRX ifc:RotationalDisplacementRX 0 (1)
RotationalDisplacementRY ifc:RotationalDisplacementRY 0 (1)
RotationalDisplacementRZ ifc:RotationalDisplacementRZ 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcStructuralLoadSingleDisplacementifc:IfcStructuralLoadSingleDisplacementDistortion,
