Definition Type: Element
Name: IfcStructuralLoadSingleDisplacementDistortion
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcStructuralLoadSingleDisplacementDistortion
Containing Schema: IFC2X2_FINAL.xsd
Abstract
Collapse XSD Schema Diagram:

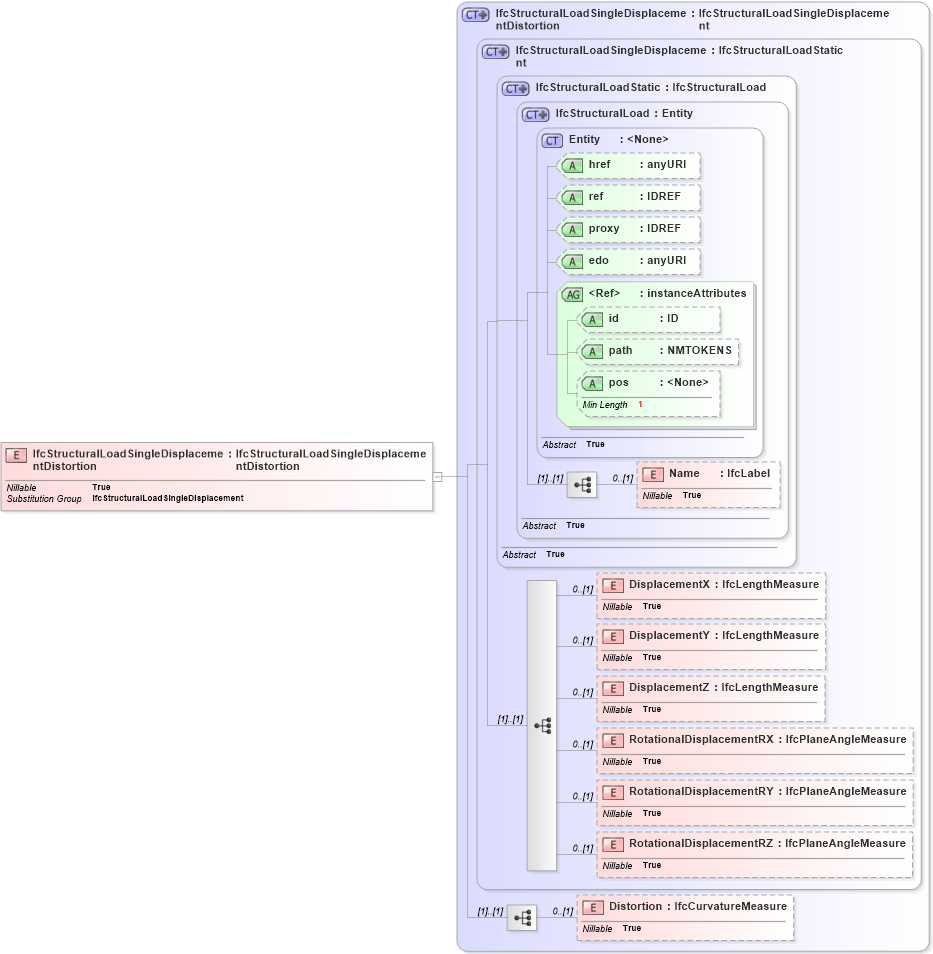

Drilldown into Distortion in schema ifc2x2_final_xsd Drilldown into RotationalDisplacementRZ in schema ifc2x2_final_xsd Drilldown into RotationalDisplacementRY in schema ifc2x2_final_xsd Drilldown into RotationalDisplacementRX in schema ifc2x2_final_xsd Drilldown into DisplacementZ in schema ifc2x2_final_xsd Drilldown into DisplacementY in schema ifc2x2_final_xsd Drilldown into DisplacementX in schema ifc2x2_final_xsd Drilldown into Name in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcStructuralLoad in schema ifc2x2_final_xsd Drilldown into IfcStructuralLoadStatic in schema ifc2x2_final_xsd Drilldown into IfcStructuralLoadSingleDisplacement in schema ifc2x2_final_xsd Drilldown into IfcStructuralLoadSingleDisplacementDistortion in schema ifc2x2_final_xsdXSD Diagram of IfcStructuralLoadSingleDisplacementDistortion in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="IfcStructuralLoadSingleDisplacementDistortion" type="ifc:IfcStructuralLoadSingleDisplacementDistortion" substitutionGroup="ifc:IfcStructuralLoadSingleDisplacement" nillable="true" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name ifc:Name 0 (1)
DisplacementX ifc:DisplacementX 0 (1)
DisplacementY ifc:DisplacementY 0 (1)
DisplacementZ ifc:DisplacementZ 0 (1)
RotationalDisplacementRX ifc:RotationalDisplacementRX 0 (1)
RotationalDisplacementRY ifc:RotationalDisplacementRY 0 (1)
RotationalDisplacementRZ ifc:RotationalDisplacementRZ 0 (1)
Distortion ifc:Distortion 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcStructuralLoadSingleDisplacement
