Definition Type: Element
Name: Intersection
Namespace: http://www.landxml.org/schema/LandXML-1.1
Containing Schema: LandXML-1.1.xsd
Abstract

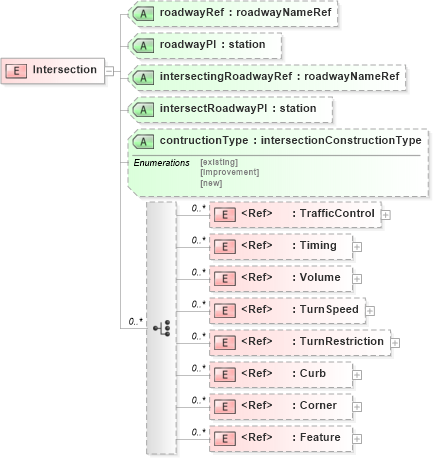

Collapse XSD Schema Diagram:
Drilldown into Feature in schema landxml-1_1_xsd Drilldown into Corner in schema landxml-1_1_xsd Drilldown into Curb in schema landxml-1_1_xsd Drilldown into TurnRestriction in schema landxml-1_1_xsd Drilldown into TurnSpeed in schema landxml-1_1_xsd Drilldown into Volume in schema landxml-1_1_xsd Drilldown into Timing in schema landxml-1_1_xsd Drilldown into TrafficControl in schema landxml-1_1_xsd Drilldown into contructionType in schema landxml-1_1_xsd Drilldown into intersectRoadwayPI in schema landxml-1_1_xsd Drilldown into intersectingRoadwayRef in schema landxml-1_1_xsd Drilldown into roadwayPI in schema landxml-1_1_xsd Drilldown into roadwayRef in schema landxml-1_1_xsdXSD Diagram of Intersection in schema landxml-1_1_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="Intersection">
    <xs:complexType>
        <xs:choice minOccurs="0" maxOccurs="unbounded">
            <xs:element ref="TrafficControl" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Timing" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Volume" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="TurnSpeed" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="TurnRestriction" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Curb" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Corner" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded" />
        </xs:choice>
        <xs:attribute name="roadwayRef" type="roadwayNameRef" />
        <xs:attribute name="roadwayPI" type="station" />
        <xs:attribute name="intersectingRoadwayRef" type="roadwayNameRef" />
        <xs:attribute name="intersectRoadwayPI" type="station" />
        <xs:attribute name="contructionType" type="intersectionConstructionType" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TrafficControl land:TrafficControl 0 unbounded
Timing land:Timing 0 unbounded
Volume land:Volume 0 unbounded
TurnSpeed land:TurnSpeed 0 unbounded
TurnRestriction land:TurnRestriction 0 unbounded
Curb land:Curb 0 unbounded
Corner land:Corner 0 unbounded
Feature land:Feature 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
roadwayRef land:roadwayRef (Optional)
roadwayPI land:roadwayPI (Optional)
intersectingRoadwayRef land:intersectingRoadwayRef (Optional)
intersectRoadwayPI land:intersectRoadwayPI (Optional)
contructionType land:contructionType (Optional)
