Documentation for National Information Exchange Model (NEIM)
Definition Type: Element
Name: RecordTransactionData
Namespace: http://niem.gov/niem/ansi-nist/2.0
Type: ansi-nist:TransactionType
Containing Schema: ansi-nist.xsd
Abstract
Documentation:
Detailed information pertaining to the transaction being transmitted.

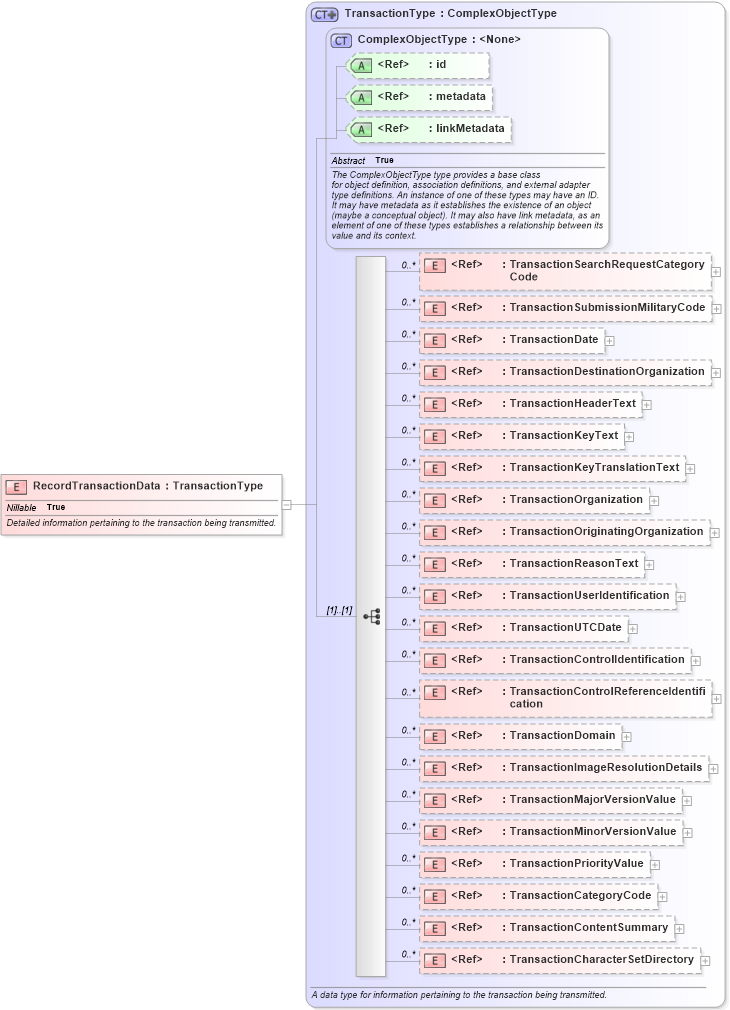

Collapse XSD Schema Diagram:
Drilldown into TransactionCharacterSetDirectory in schema ansi-nist_xsd Drilldown into TransactionContentSummary in schema ansi-nist_xsd Drilldown into TransactionCategoryCode in schema ansi-nist_xsd Drilldown into TransactionPriorityValue in schema ansi-nist_xsd Drilldown into TransactionMinorVersionValue in schema ansi-nist_xsd Drilldown into TransactionMajorVersionValue in schema ansi-nist_xsd Drilldown into TransactionImageResolutionDetails in schema ansi-nist_xsd Drilldown into TransactionDomain in schema ansi-nist_xsd Drilldown into TransactionControlReferenceIdentification in schema ansi-nist_xsd Drilldown into TransactionControlIdentification in schema ansi-nist_xsd Drilldown into TransactionUTCDate in schema ansi-nist_xsd Drilldown into TransactionUserIdentification in schema ansi-nist_xsd Drilldown into TransactionReasonText in schema ansi-nist_xsd Drilldown into TransactionOriginatingOrganization in schema ansi-nist_xsd Drilldown into TransactionOrganization in schema ansi-nist_xsd Drilldown into TransactionKeyTranslationText in schema ansi-nist_xsd Drilldown into TransactionKeyText in schema ansi-nist_xsd Drilldown into TransactionHeaderText in schema ansi-nist_xsd Drilldown into TransactionDestinationOrganization in schema ansi-nist_xsd Drilldown into TransactionDate in schema ansi-nist_xsd Drilldown into TransactionSubmissionMilitaryCode in schema ansi-nist_xsd Drilldown into TransactionSearchRequestCategoryCode in schema ansi-nist_xsd Drilldown into linkMetadata in schema structures_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into ComplexObjectType in schema structures_xsd Drilldown into TransactionType in schema ansi-nist_xsdXSD Diagram of RecordTransactionData in schema ansi-nist_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:element name="RecordTransactionData" type="ansi-nist:TransactionType" nillable="true">
    <xsd:annotation>
        <xsd:documentation>Detailed information pertaining to the transaction being transmitted.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TransactionSearchRequestCategoryCode ansi-nist:TransactionSearchRequestCategoryCode 0 unbounded
TransactionSubmissionMilitaryCode ansi-nist:TransactionSubmissionMilitaryCode 0 unbounded
TransactionDate ansi-nist:TransactionDate 0 unbounded
TransactionDestinationOrganization ansi-nist:TransactionDestinationOrganization 0 unbounded
TransactionHeaderText ansi-nist:TransactionHeaderText 0 unbounded
TransactionKeyText ansi-nist:TransactionKeyText 0 unbounded
TransactionKeyTranslationText ansi-nist:TransactionKeyTranslationText 0 unbounded
TransactionOrganization ansi-nist:TransactionOrganization 0 unbounded
TransactionOriginatingOrganization ansi-nist:TransactionOriginatingOrganization 0 unbounded
TransactionReasonText ansi-nist:TransactionReasonText 0 unbounded
TransactionUserIdentification ansi-nist:TransactionUserIdentification 0 unbounded
TransactionUTCDate ansi-nist:TransactionUTCDate 0 unbounded
TransactionControlIdentification ansi-nist:TransactionControlIdentification 0 unbounded
TransactionControlReferenceIdentification ansi-nist:TransactionControlReferenceIdentification 0 unbounded
TransactionDomain ansi-nist:TransactionDomain 0 unbounded
TransactionImageResolutionDetails ansi-nist:TransactionImageResolutionDetails 0 unbounded
TransactionMajorVersionValue ansi-nist:TransactionMajorVersionValue 0 unbounded
TransactionMinorVersionValue ansi-nist:TransactionMinorVersionValue 0 unbounded
TransactionPriorityValue ansi-nist:TransactionPriorityValue 0 unbounded
TransactionCategoryCode ansi-nist:TransactionCategoryCode 0 unbounded
TransactionContentSummary ansi-nist:TransactionContentSummary 0 unbounded
TransactionCharacterSetDirectory ansi-nist:TransactionCharacterSetDirectory 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
linkMetadata s:linkMetadata (Optional)
Collapse Derivation Tree:
