Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: RouteInstructionType
Namespace: http://niem.gov/niem/external/ogc-openls/1.1.0/dhs-gmo/1.0.0
Containing Schema: ols.xsd
Abstract
Documentation:
Defines a single turn-by-turn route instruction or advisory formatted for presentation.
Collapse XSD Schema Diagram:

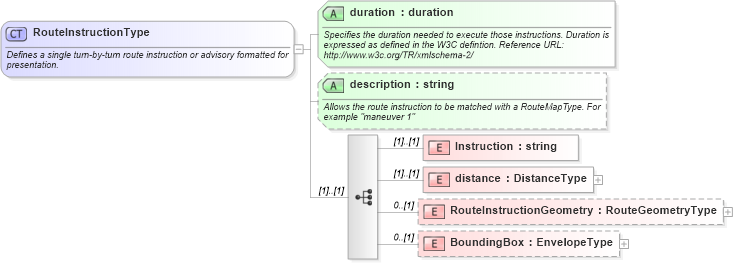

Drilldown into BoundingBox in schema ols_xsd Drilldown into RouteInstructionGeometry in schema ols_xsd Drilldown into distance in schema ols_xsd Drilldown into Instruction in schema ols_xsd Drilldown into description in schema ols_xsd Drilldown into duration in schema ols_xsdXSD Diagram of RouteInstructionType in schema ols_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<complexType name="RouteInstructionType">
    <annotation>
        <appinfo source="ADT.xsd" />
        <documentation>Defines a single turn-by-turn route instruction or advisory formatted for presentation.</documentation>
    </annotation>
    <sequence>
        <element name="Instruction" type="string" />
        <element name="distance" type="xls:DistanceType" />
        <element name="RouteInstructionGeometry" type="xls:RouteGeometryType" minOccurs="0" />
        <element name="BoundingBox" type="gml:EnvelopeType" minOccurs="0" />
    </sequence>
    <attribute name="duration" type="duration" use="required">
        <annotation>
            <documentation>Specifies the duration needed to execute those instructions. Duration is expressed as defined in the W3C defintion. Reference URL: http://www.w3c.org/TR/xmlschema-2/</documentation>
        </annotation>
    </attribute>
    <attribute name="description" type="string">
        <annotation>
            <documentation>Allows the route instruction to be matched with a RouteMapType. For example "maneuver 1"</documentation>
        </annotation>
    </attribute>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Instruction xls:Instruction (1) (1)
distance xls:distance (1) (1)
RouteInstructionGeometry xls:RouteInstructionGeometry 0 (1)
BoundingBox xls:BoundingBox 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
duration xls:duration Required
description xls:description (Optional)
Collapse Derivation Tree:
Collapse References:
xls:RouteInstructionmmr:RouteModeInstructionType,
